This guide is for IT administrators who need to prepare Databricks and connect a SQL warehouse in Speckle before users can register tables and query them in AI chat and data tools.
The Databricks integration is in Beta and is enabled per workspace. If you don’t see Databricks under your project’s Integrations, submit the beta access request form.
If your organisation has not prepared Databricks for Speckle yet, an IT administrator (or anyone with Databricks admin access) must complete the steps below. Speckle undertakes all Databricks actions via a service principal you create (OAuth machine-to-machine). The SQL grants you assign to that service principal in Databricks define exactly what Speckle can read — grant only the catalogs, schemas, and tables you want to expose.

​
Prepare the service principal and grants

1

Create a service principal

In your Databricks account console, go to User management > Service principals and add a new service principal for Speckle.

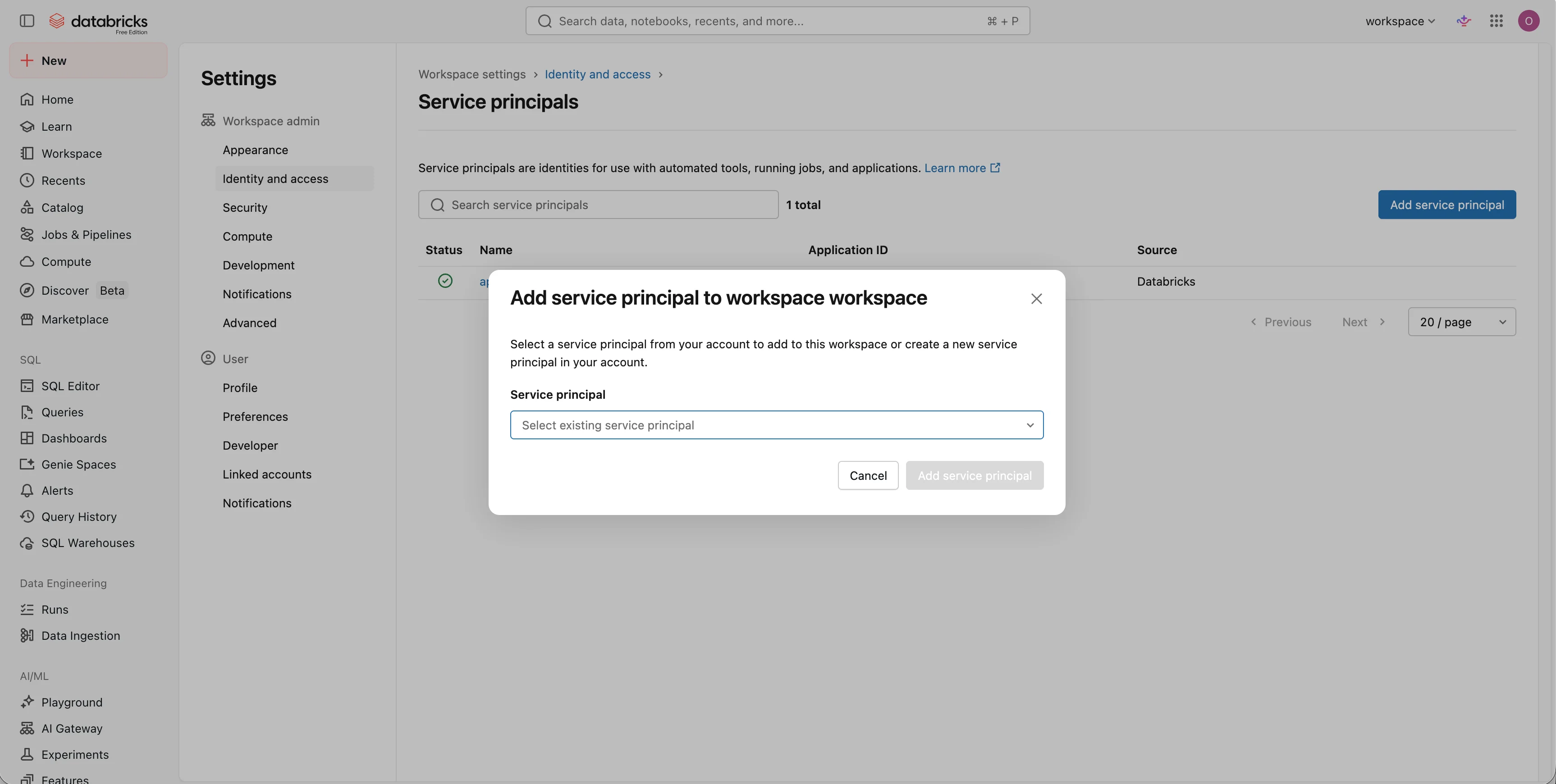

Create a service principal in Databricks
You should see the new service principal in User management > Service principals.
2

Generate an OAuth secret

On the service principal, open Secrets and generate a new OAuth secret.

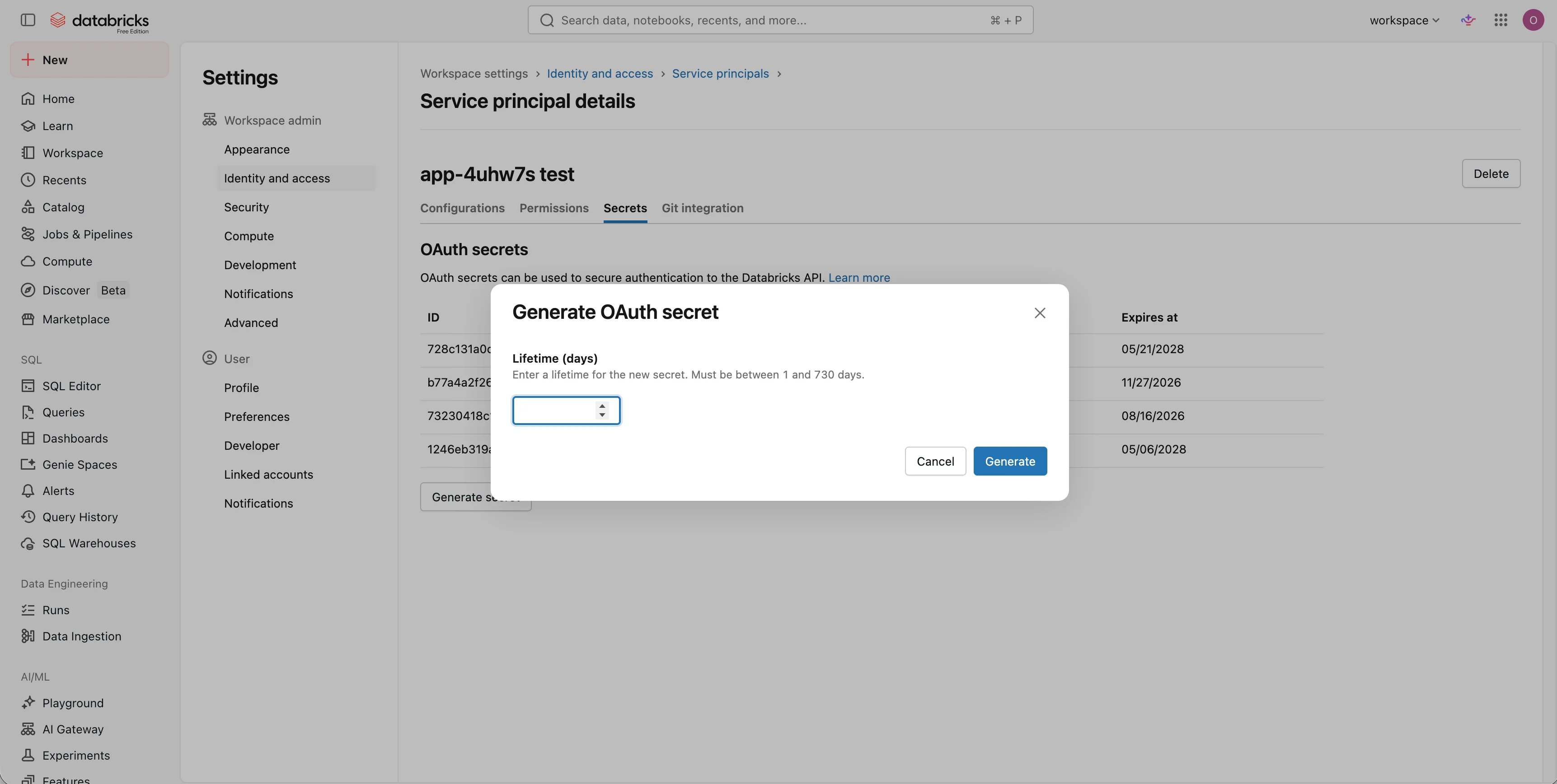

Generate an OAuth secret for the service principal
A new OAuth secret is listed and ready to copy.
3

Copy the Client ID and secret

Copy the Client ID (the service principal’s Application ID) and the Client secret. The secret is shown only once at creation — copy it now and store it securely.

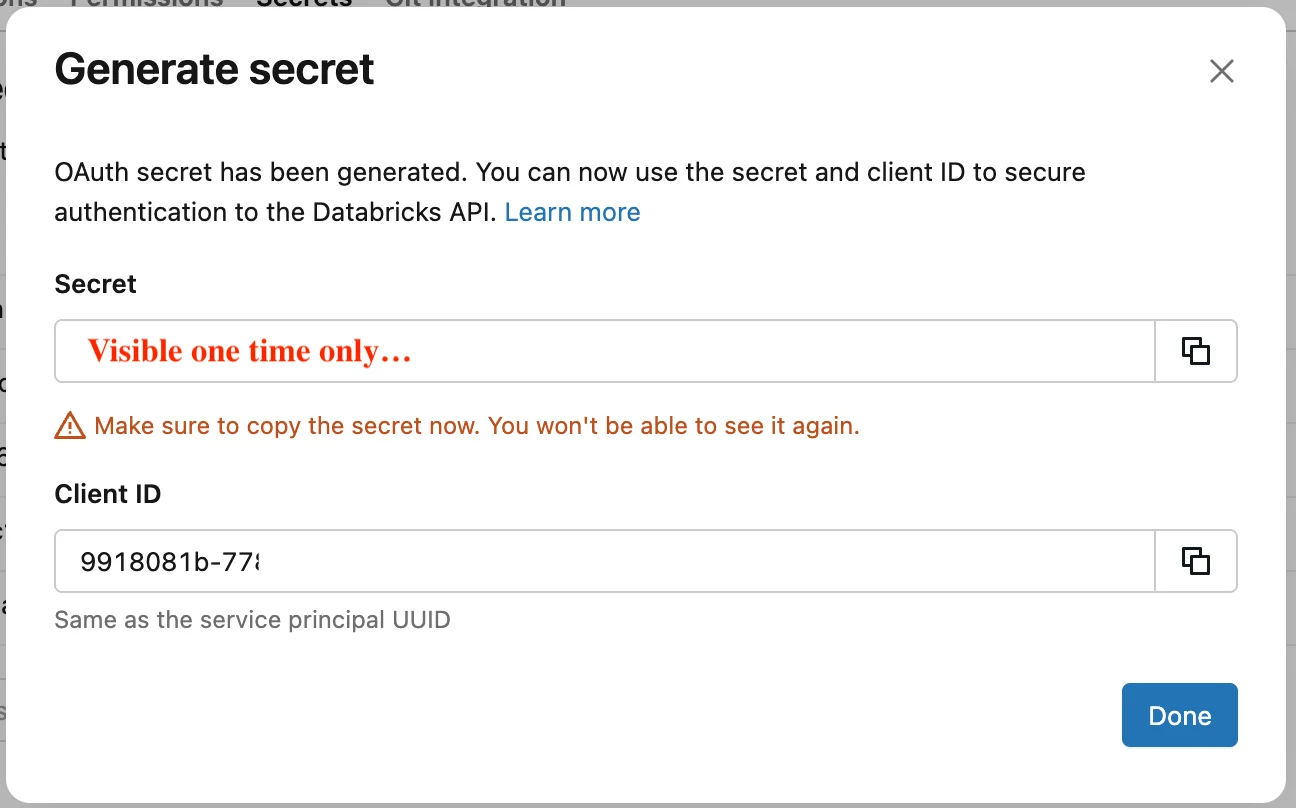

Client ID and secret for the service principal
You now have the Client ID and secret ready to paste into Speckle.
4

Get your SQL warehouse connection details

Open SQL Warehouses > your warehouse > Connection details and note the Server hostname (your Workspace host) and the HTTP path.

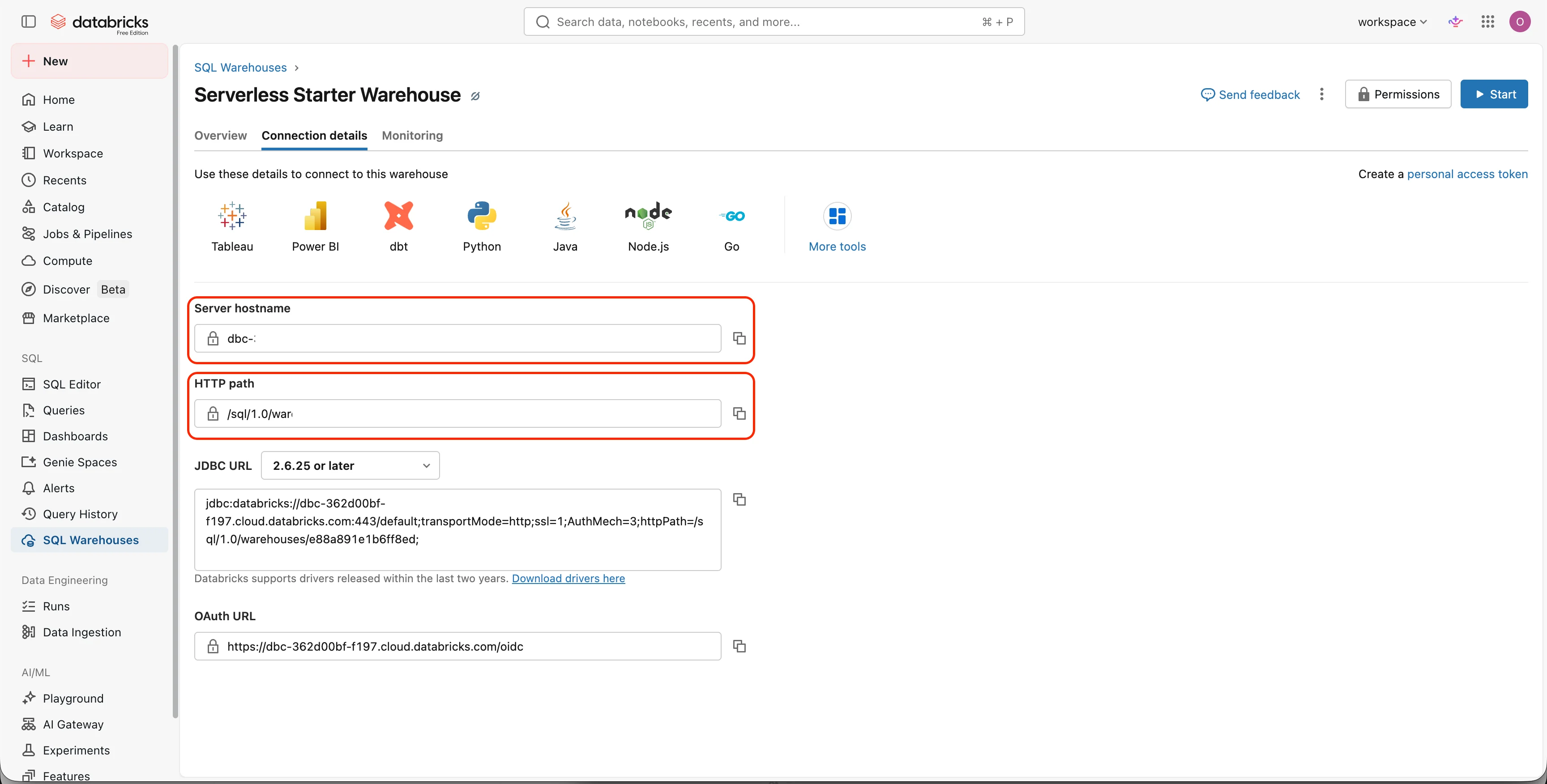

SQL warehouse connection details: server hostname and HTTP path
You now have the server hostname and HTTP path needed to connect.
5

Grant access to the data you want to expose

Grant the service principal USE CATALOG, USE SCHEMA, and SELECT on the specific catalogs, schemas, and tables users need — plus access to the SQL warehouse. SELECT on a table requires USE CATALOG on its catalog and USE SCHEMA on its schema, so grant all three. To expose every table in a schema at once, grant SELECT on the schema instead of listing each table.Run the grants in a Databricks SQL editor or notebook. The grantee is the service principal’s Client ID (its Application ID, from the earlier step):
Grant read access to the Speckle service principal
-- Replace the catalog/schema/table names and the Client ID with your own.
GRANT USE CATALOG ON CATALOG `speckle`                       TO `9918081b-778e-469a-a69b-acc950b08e09`;
GRANT USE SCHEMA  ON SCHEMA  `speckle`.`cost`                TO `9918081b-778e-469a-a69b-acc950b08e09`;
GRANT SELECT      ON TABLE   `speckle`.`cost`.`diamonds`     TO `9918081b-778e-469a-a69b-acc950b08e09`;
GRANT SELECT      ON TABLE   `speckle`.`cost`.`walls`        TO `9918081b-778e-469a-a69b-acc950b08e09`;
The service principal can now read only the catalogs, schemas, and tables you granted.

​
Connect the warehouse in Speckle

1

Open the Databricks integration

In Speckle, open your project’s Integrations > Databricks and select Connect to Databricks.The connection form opens.
2

Enter your warehouse details

Fill in:
  • Workspace host — e.g. dbc-xxxxxxxx.cloud.databricks.com (hostname only, no https://).
  • SQL warehouse HTTP path — e.g. /sql/1.0/warehouses/abcd1234efgh5678.
  • Authentication method — OAuth (service principal) with your Client ID and Client secret, or Personal access token with your token.

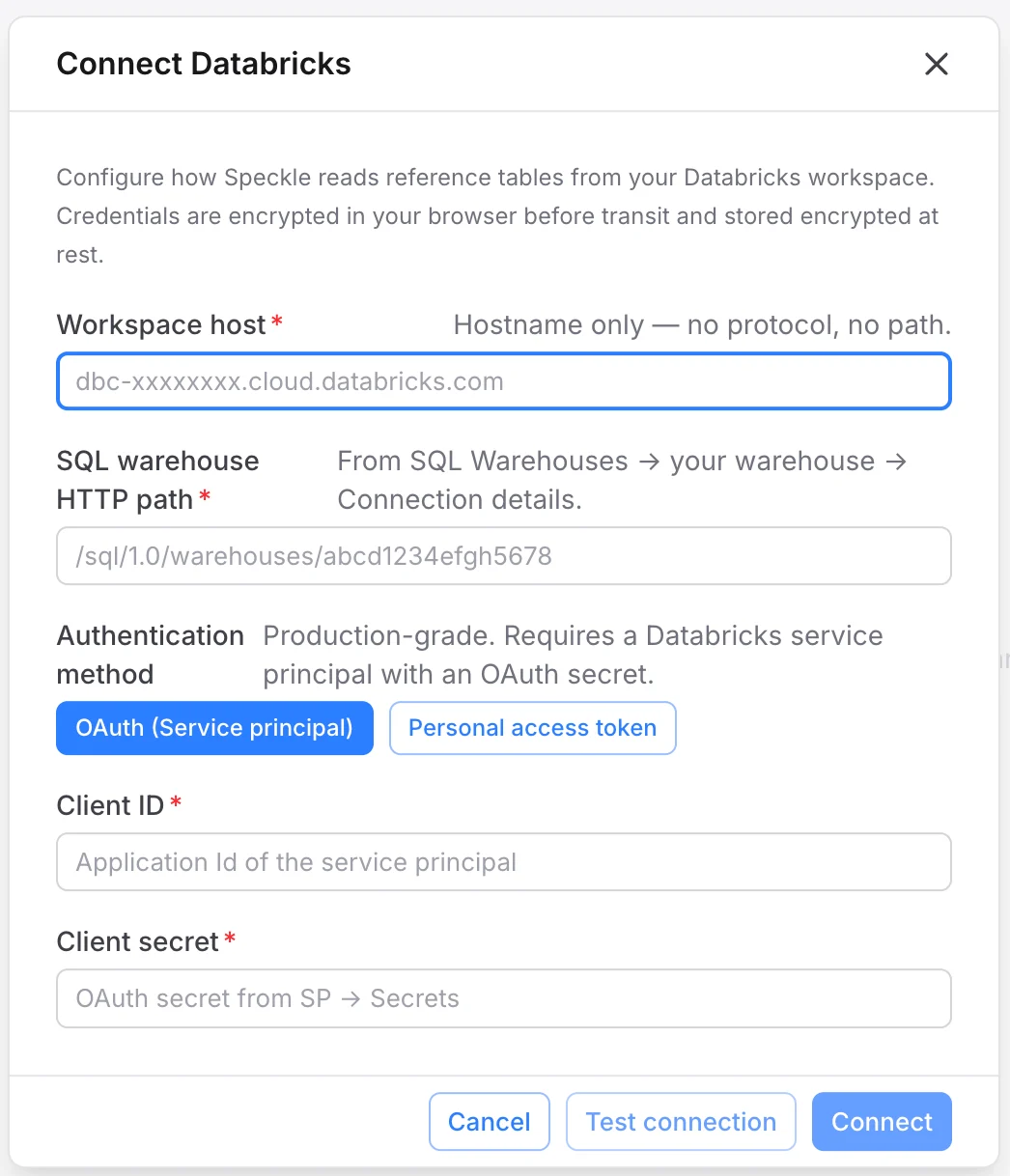

Connect Databricks connection form
Your warehouse connection details are ready to test.
3

Test the connection

Select Test connection. Speckle runs a SELECT 1 round-trip against your warehouse. Auto-stopped or Free-Edition warehouses can take a minute to wake on the first query — if the test times out on a cold warehouse, try again once it’s running.You should see a success message with the response time, or an error explaining what failed.
4

Save

Select Connect (or Save changes). The connection is now stored for your workspace and you can browse it.
Speckle is read-only in Databricks. It only runs SELECT queries against tables users register and never writes, alters, or deletes data in your warehouse.Databricks SQL grants define the boundary. Speckle can only read catalogs, schemas, and tables you explicitly granted to the service principal — nothing more.Connection secrets are protected in Speckle. They are encrypted in your browser before they are sent, stored encrypted at rest, and never shown again after you save the connection.
After this is enabled, users can continue with Databricks user setup.
