Unreal

Our Unreal Engine Connector reached a beta stage of development.
Currently, we only support receiving geometry (sending support is on our roadmap).

We officially support Unreal Engine 4.27 and newer 5.X versions on Windows, Mac, and Linux platforms (other platforms untested).

Make sure to check out (and star :star: ) our Github repository: https://github.com/specklesystems/speckle-unreal If you have any thoughts or suggestions about this plugin, you’re welcome to discuss them in our forum.

​

Installation (Marketplace)

The Unreal Connector is packaged as a code plugin on the Unreal Engine Marketplace. For most users, this installation method is recommended.

Once installed, it is necessary to enable the Speckle plugin for your project from the Edit → Plugins menu. Once enabled, you should be promoted to restart your project.

That’s It! Your project can now use the Speckle plugin!

​

Installation (Git)

For developers wanting to modify the source code, trial work-in-progress branches, and/or contribute changes back to the speckle-unreal repo, installing through git is prefered.

1. Git clone this repo into your project’s Plugins directory (created as needed).

git clone https://github.com/specklesystems/speckle-unreal

3. Open your UE project (or restart the editor if you already have it opened). This will build the plugin in your environment.

If you encounter build issues, try building your project from VS/Rider directly. Look at the Saved\Logs\ files for error messages, and don’t hesitate to reach out on our community forums for help!

​

Usage (Editor)

The plugin includes an actor type named Speckle Unreal Manager that you can use to import objects from Speckle.

Here is how to use it:

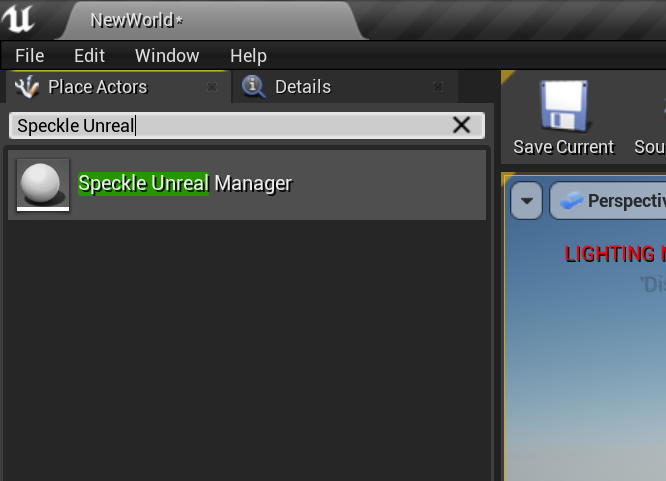

1. In the Place Actors sidebar, search for Speckle Unreal Manager and add it to the world.

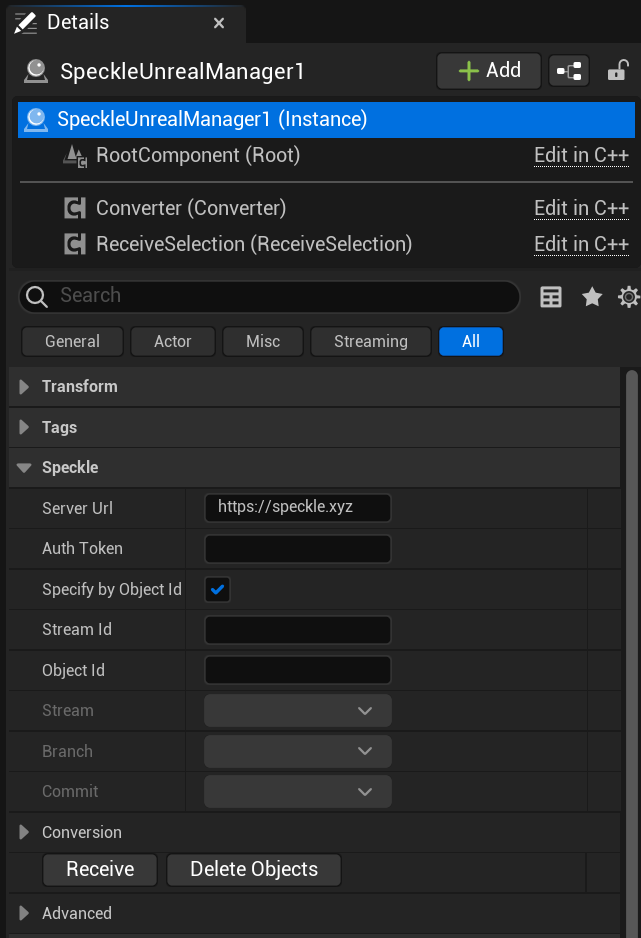

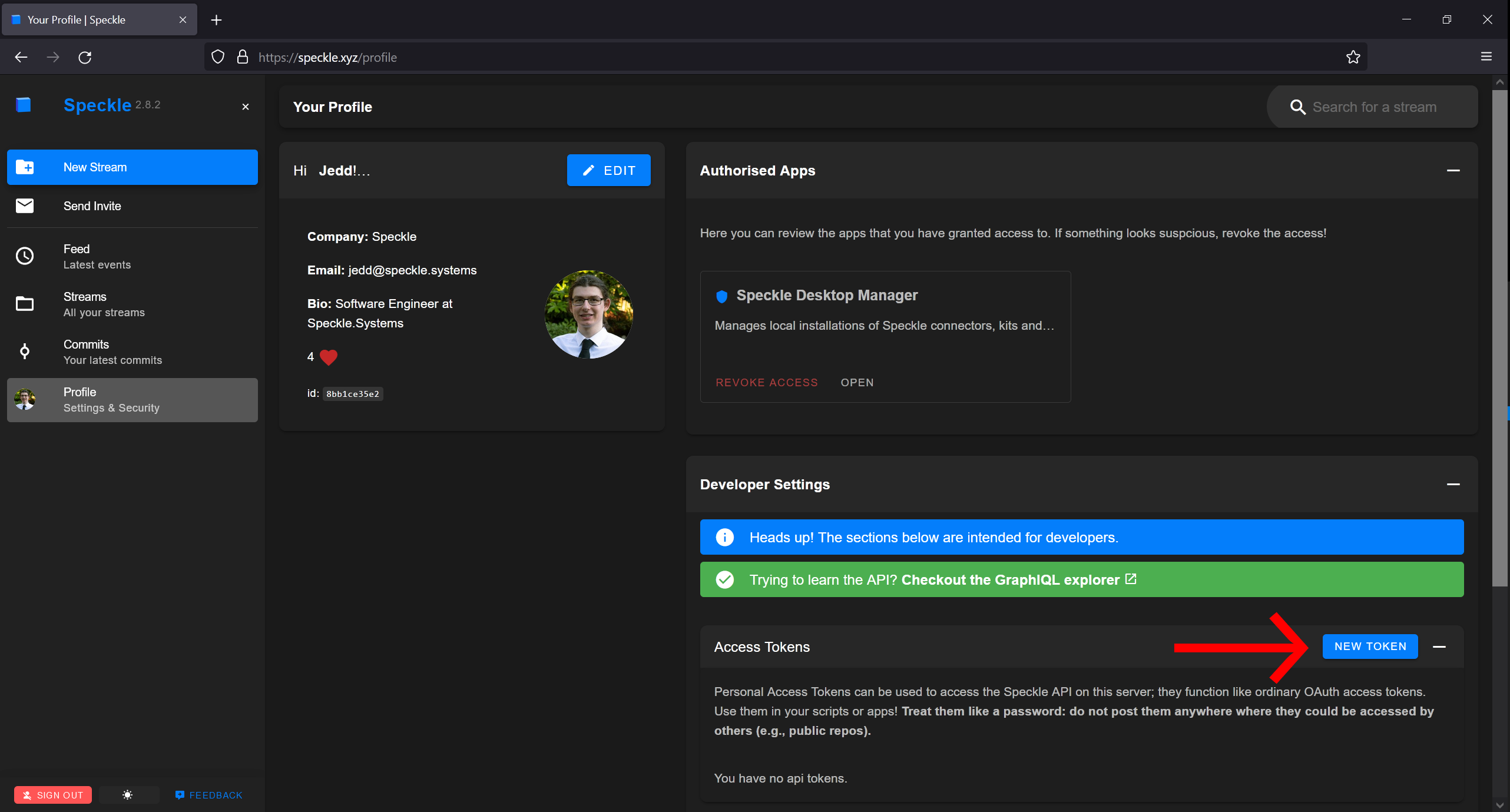

2. Select the SpeckleUnrealManager instance in the World Outliner sidebar and use the options presented in the Speckle category.

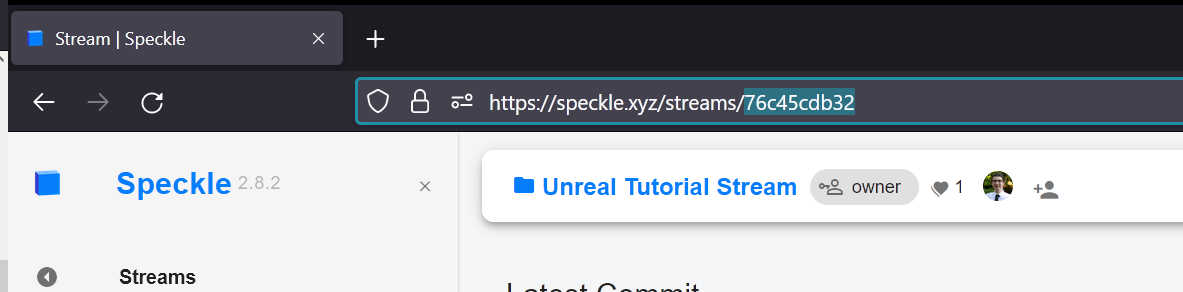

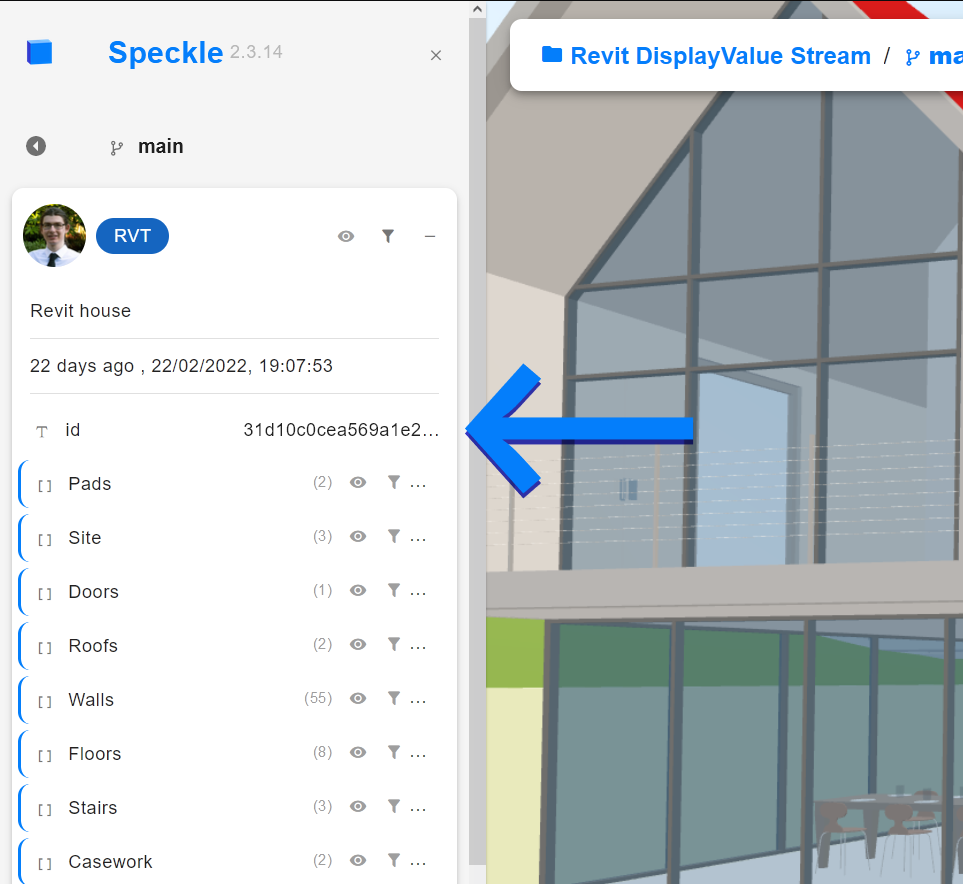

3. There are two ways to import objects using the Speckle Unreal Manager actor.

4. After you set up the receive parameters, just click the Receive button. The specified object and all its children will be imported as Actors.
   To set options on how the objects are converted, see the object-conversion secion.

​

Usage (Blueprint)

Blueprint can be a powerful tool for implementing your own custom behaviours for receiving objects.

The receiving process can be performed using blueprint, doing it this way can allow for extra flexibility for performing additional actions with received data/converted actors.

Using blueprint to do this requires some basic understanding of how the plugin works.

• A ServerTransport is used to make a HTTP request to a Speckle server for the object (and its children). It fetches JSON objects from the server, which are then stored in a local Memory Transport.
• The ReceiveOperation node handles the received objects, and deserializes them into Object Models (objects inheriting UBase).
• The SpeckleConverterComponent converts these objects into native actors/components.

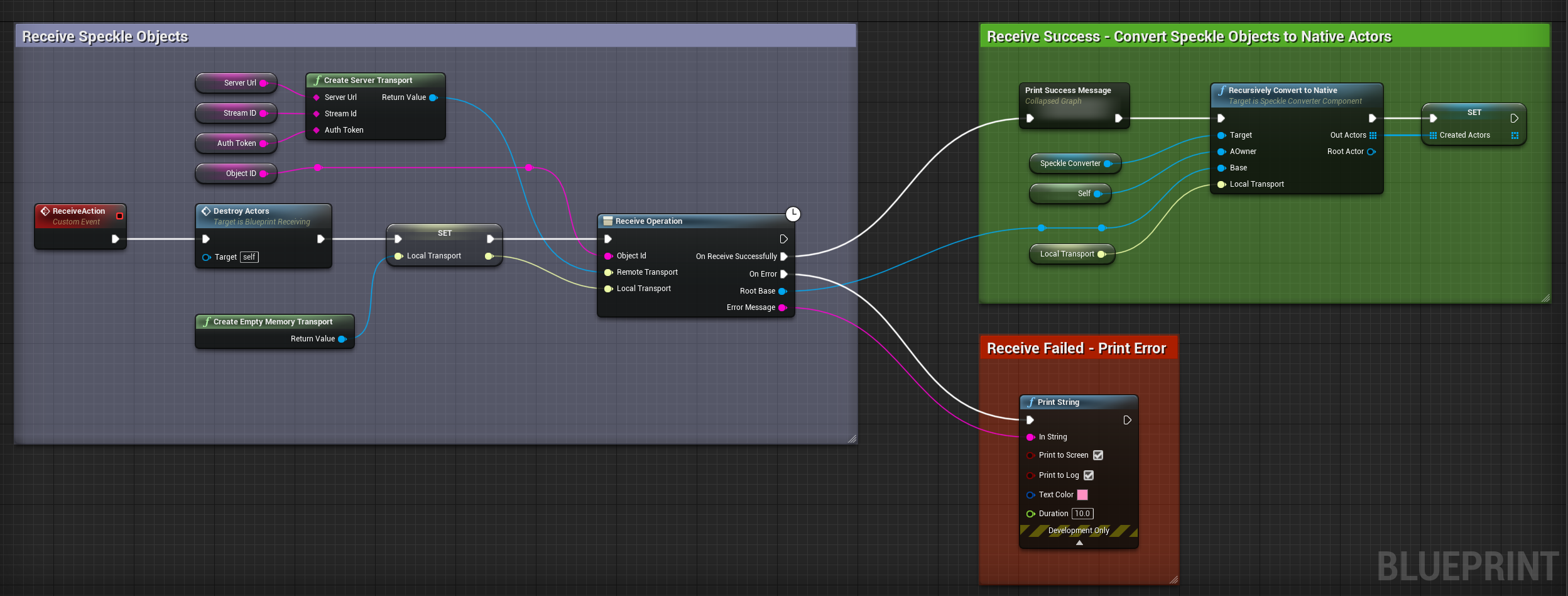

An example of this process in Blueprint is provided in the Plugins\speckle-unreal\Content\Examples directory and looks like this:

Additionally, a number of Blueprint macro nodes are provided to fetch details about project/model/version/users.

​

Object conversion

The SpeckleConverterComponent provides the conversion functionality for converting Speckle objects to native UE Actors. However, this class does not contain specific conversion logic.
Instead, the converter logic is modularised, such that the conversion functions and settings for specific types are encapsulated in their own class implementing ISpeckleConverter.

Please note that ISpeckleConverter here, is not the same as the Speckle.​Core.​Kits.​ISpeckleConverter in the .NET SDK.

Out of the box, the plugin provides converters for the following conversions:

StaticMeshConverter and ProceduralMeshConverter are mutually exclusive, and for most users we recommend using static meshes (default).

Due to the nature of Unreal Engine, it is necessary to offer options/settings for how objects are converted. So each ISpeckleConverter can also expose properties that can be set from within the editor, or from BP/C++. This structure is distinctly different from other connectors, which often have one large conversion class that holds many conversions, and provide few (if any) settings.

Using the StaticMeshConverter as an example, you can see that it exposes several settings, such as the type of actor to create, and mesh build settings.

Out of the box, SpeckleConverterComponents will be setup with a set of default converters. For most users, there is no further configuration required. However you can create your own instances of specific ISpeckleConverters through the assets in the Content, and then assign them to the converter component. This can be done by right clicking and creating a new converter of a specified type.

You can create your own custom converters in BP/C++ (see Creating Custom Conversion docs)

​

Mesh converters

Speckle-Unreal provides two types of mesh converters:

1. ProceduralMeshConverter(https://github.com/specklesystems/speckle-unreal/blob/main/Source/SpeckleUnreal/Public/Conversion/Converters/ProceduralMeshConverter.h):
   • Creates a UProceduralMeshComponent.
   • Slightly faster to convert, and allow run-time editing of vertices/faces.
   • Slowest to render, can’t use baked lighting.
2. StaticMeshConverter(https://github.com/specklesystems/speckle-unreal/blob/main/SpeckleUnrealProject/Plugins/SpeckleUnreal/Source/SpeckleUnreal/Public/SpeckleUnrealStaticMesh.h):
   • Creates a UStaticMeshComponent.
   • Mesh vertices/faces/etc can’t be edited easily (needs to be rebuilt).
   • Faster to render.
   • Built meshes can be saved as assets, allowing levels to be reloaded.
   • Additional Editor only build process allows for baked lighting, extra path-tracing options, and optimised lighting.

For most users we recommend using Static Meshes because they are more optimised for rendering and can be saved to a level. Static Meshes can be used during runtime or editor mode, but editor only build process will only be available with editor access.

​

Material converter

As a tool, Unreal shines when it comes to producing beautiful, photorealistic renders of scenes. This has significant value for Speckle users as a tool for producing high quality and real-time demonstrations, animations, and XR experiences.

For some users, the simple flat shaded PBR materials converted using an object’s RenderMaterial(https://github.com/specklesystems/speckle-sharp/blob/main/Objects/Objects/Other/RenderMaterial.cs) will be all they want.

Many users, however, want to use textured materials, after all, Unreal excels in photorealism, and high quality materials are a significant part of that.

The Material Overrides feature of the MaterialConverter addresses this need, as it enables a semi-automated workflow for applying textured materials to received geometry.

Speckle’s Objects(https://speckle.guide/developers/objects.html) kit supports PBR materials through the RenderMaterial(https://github.com/specklesystems/speckle-sharp/blob/main/Objects/Objects/Other/RenderMaterial.cs) property of Speckle meshes. When receiving meshes with a RenderMaterial, the MaterialConverter will create a MaterialInstances which are applied to converted meshes.

​

How are materials converted

The MaterialConverter exposes a few properties for defining the base/parent material of the materials created. Opaque materials will be converted as instances of BaseMeshOpaqueMaterial. And transparent materials will be converted as instances of BaseMeshTransparentMaterial.

By default, these base materials are simple materials with opaque/translucent shader models respectively. Both have several properties exposed (see screenshot), and during the conversion process, these properties are set with the values from the RenderMaterial.

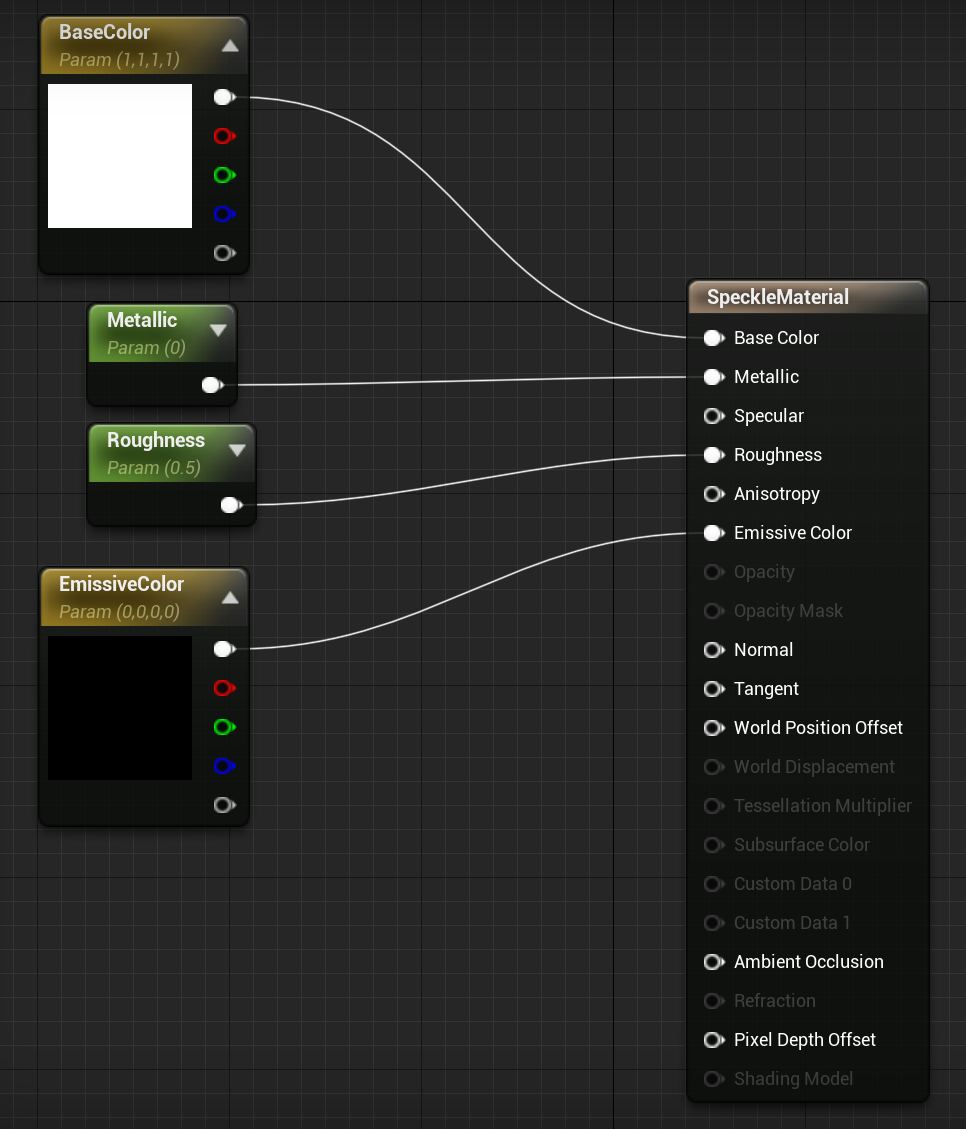

The default opaque material “SpeckleMaterial”, looks like this:

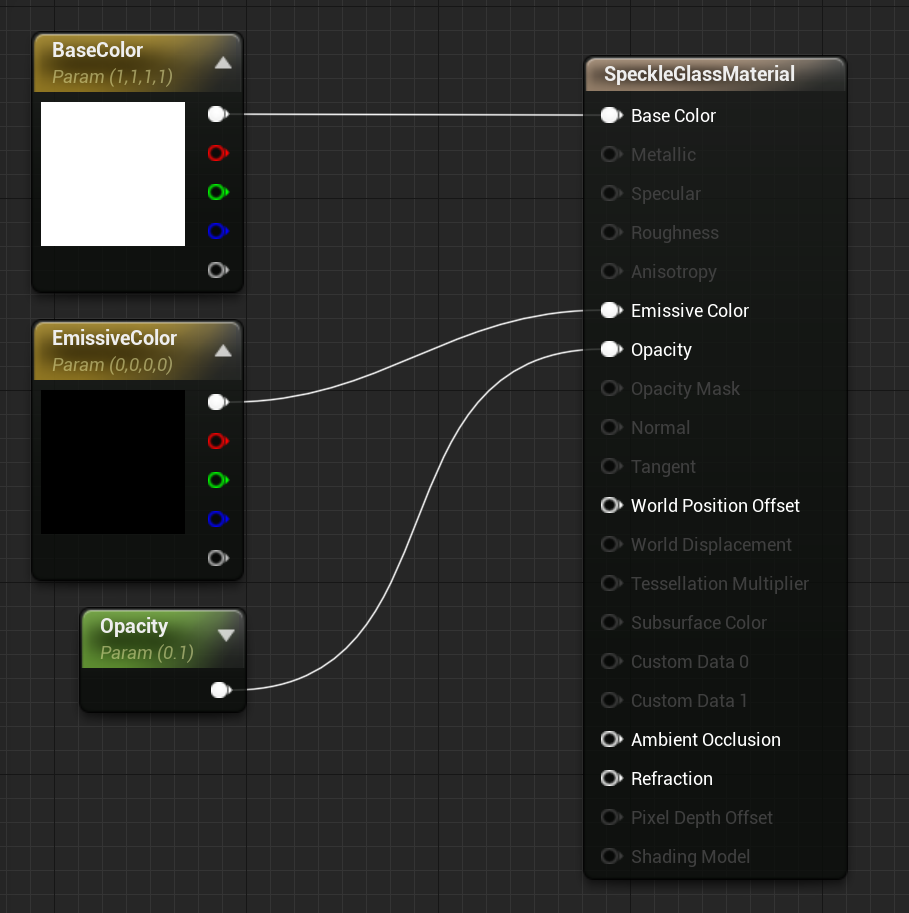

And the default translucent material “SpeckleGlassMaterial”, looks like this:

These base materials are exposed as properties of the converter, and can be changed from within the editor (or from BP/C++) to a custom material.

​

Overriding/Substituting converted materials

Speckle does not currently support sending/receiving textured materials. However, we do provide a way to automatically apply native Unreal materials while receiving objects from Speckle.

Converted materials can be overridden with custom materials in two ways.

• By Name - The RenderMaterial.name will be matched against materials in the MaterialsOverridesByName array.
• By Id - The RenderMaterial.id will be by key with materials in the MaterailOverridesById map.

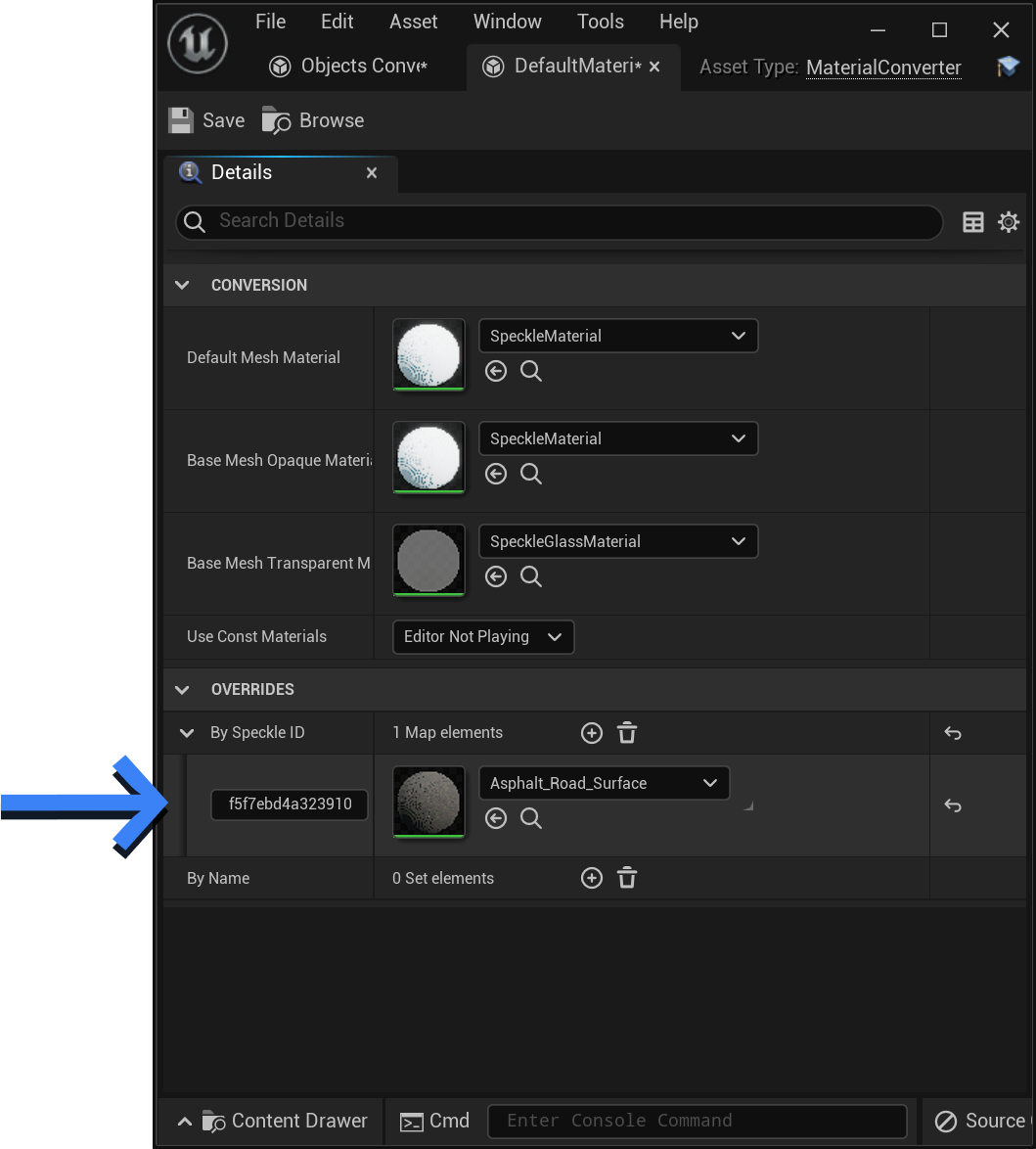

Screenshot of material overrides By ID in the details panel of the default MaterialConverter instance. Materials with the ID f5f7ebd4a... will use this material instead of converting one from the object’s RenderMaterial.

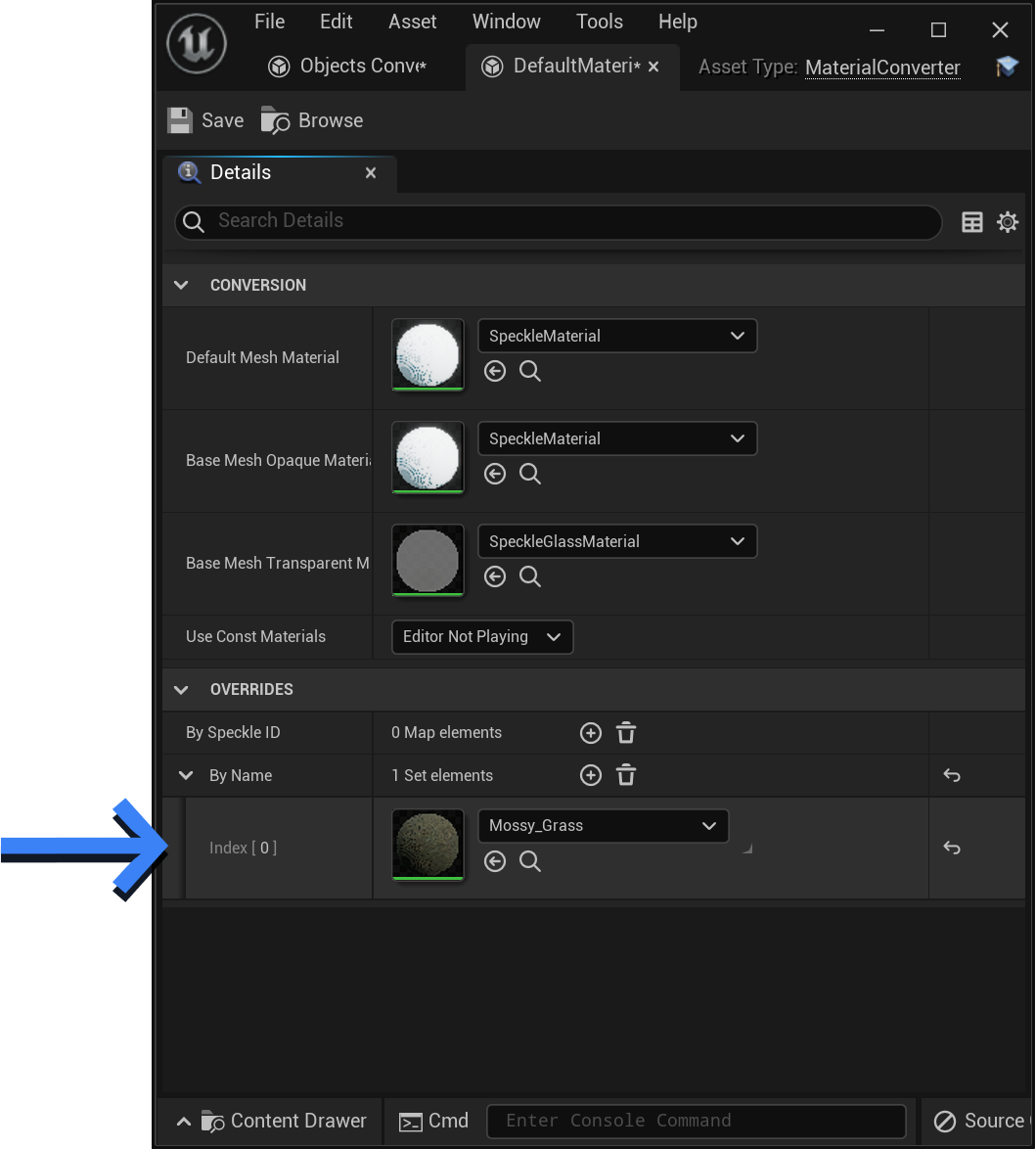

Screenshot of material overrides By Name in the details panel of the default MaterialConverter instance.. Materials with the name Mossy_Grass will use this material instead of converting one from the object’s RenderMaterial.

​

Material priorities

Material priority (high to low).

1. A material in OverridesById that matches by Id.
2. A material in OverridesByName that matches by Name.
3. A material cached from a previous receive operation.
4. A material asset in the /Game/Speckle/Materials/{id} package. (i.e. from a previous receive, but not cached, or from a strategically placed asset)
5. A material converted from RenderMaterial of the Mesh.
6. Finally, if all else fails, the DefaultMaterial set in the MaterialConverter will be used.

Note: If there is no material on an object, we do not fall back to the parent’s material like previous versions of this connector. We are aware this may cause unexpected behaviour. This issue will be addressed.

​

Limitations

• In order to use textured materials, meshes need to have Texture coordinates (UV coordinates). Currently, Texture coordinates are only outputted from Rhino, Blender, and Sketchup connectors. (More connectors will receive support shortly! see issue. The Unreal Connector does not generate texture coordinates for you. Having UV coordinates also has other advantages for baked lighting.
• Textures cannot be sent/received through Speckle, only flat colours and simple PBR properties. Texture support is on our roadmap, but there are several techincal chalanges to overcome before this is possible.

​

Developing custom conversion logic

As previously mentioned, ISpeckleConverter classes can expose properties, such as the type of Actor to create, whether to create an asset, or build settings etc.

If this doesn’t satisfy your needs, there are a few ways to further customise conversion.

1. You can extend an existing converter, and re-implement specific functions.
2. You can write a completely custom ISpeckleConverter class and add an instance to your SpeckleConverterComponent
3. You can extend the SpeckleConverterComponent to customise more generally how objects are converted and actors attached.

Converters can be created in either C++ or Blueprint.

​

Custom object models

Object Models in the Unreal plugin function the same as the Object Models in .NET.

Out of the box, the Speckle for Unreal plugin provides several Object Models. These classes can be found in speckle-unreal\Source\SpeckleUnreal\Public\Objects and are all subclasses of the UBase type. For the most part, these classes are direct ports of the corresponding .NET classes from our Objects kit. For example Mesh, and BlockInstance.

An Object Model is required in order to convert Speckle objects. If you are looking to convert a type that we don’t provide an Object Model, creating one is simple.

This process is very similar to defining an object model in the .NET and PY SDKs, But be aware of certain limitations:

1. The UE plugin does not provide a reflection based (de)serializer. Object Models implement their own (de)serialization logic in the form of manually parsing JSON properties.
2. Only certain Object Models are provided out of the box, while most are direct ports of Objects kit, some are not!
3. The Speckle Type is defined in the Object Model’s constructor, not by its Namespace like in .NET.
4. Units are applied while parsing (rather than ToNative conversion - subject to change)

To implement your own Unreal Object Model, simply create a new class inheriting from UBase. Add your properties, and implement the Parse method to set these properties from the JSON object.

bool UMyObjectModel::Parse(const TSharedPtr<FJsonObject> Obj, const TScriptInterface<ITransport> ReadTransport)
{
	if(!Super::Parse(Obj, ReadTransport)) return false;

	// Add your own JSON parsing here!
	// Remove explicit properties from DynamicProperties array

	// Simple example of parsing an optional number property:
	if(Obj->TryGetNumberField("myProperty", MyProperty)) DynamicProperties.Remove("myProperty");

	// Simple example of parsing an required number property:
	if(!Obj->TryGetNumberField("myProperty", MyProperty)) return false; // Return false on error, rather than fatal assertions
	DynamicProperties.Remove("myProperty");

	//Return true if parsed successfully
	return true;
}

For further reference, see URenderMaterial for an example, see UMesh for a more advanced example. UConversionUtils provides helper methods for dechunking / dereferencing Speckle objects.

Currently, Unit scaling is applied during Parsing (not conversion). This is subject to change!

In the future, we may consider creating a proper deserializer that uses reflection, this would mean Object Models can be deserialized without developers having to write these Parse methods. There are several technical challenges for us to solve before this is possible.
Feel free to open a discussion on our forums.

​

Creating converters (C++)

A custom converter can be defined by creating a UObject class that implements ISpeckleConverter. You must implement the ConvertToNative and CanConverToNative methods.

UCLASS(BlueprintType, Blueprintable)
class SPECKLEUNREAL_API UMyConverter : public UObject, public ISpeckleConverter
{
	GENERATED_BODY()

public:
	virtual UObject* ConvertToNative_Implementation(const UBase* SpeckleBase, UWorld*, TScriptInterface<ISpeckleConverter>&) override;

	virtual bool CanConvertToNative_Implementation(TSubclassOf<UBase> BaseType) override;

}

Most likely, instead of jamming the actual conversion code in the ConvertToNative function, it is best to contain that in a separate function. But this class can be implemented however you want! The AvailableConverters parameter object is a reference to the master aggregate converter, and we can use this if we need to convert other Speckle Objects, and want to reuse conversion logic from another converter. The StaticMeshConverter for example, will use the AvailableConverters to convert a RenderMaterial.

UObject* UMyConverter::ConvertToNative_Implementation(const UBase* SpeckleBase, UWorld* World, TScriptInterface<ISpeckleConverter>& AvailableConverters)
{
	const UMyObjectModel* m = Cast<UMyObjectModel>(SpeckleBase);

	if(m == nullptr) return nullptr;

	return MyObjectToNative(m);
}

AActor* UMyConverter::MyObjectToNative(const UMyObjectModel* MyObject, UWorld* World)
{
	// Conversion logic here!!
	// Convert MyObject into an Actor that we return
}

An optional CleanUp method can be implemented, which is used to clear any cached objects / any additional clean up that needs to be done between receive operations.

​

Creating converters (Blueprint)

In the same way as with C++, converters can also be implemented using Blueprint. First create a new Blueprint Inheriting UObject

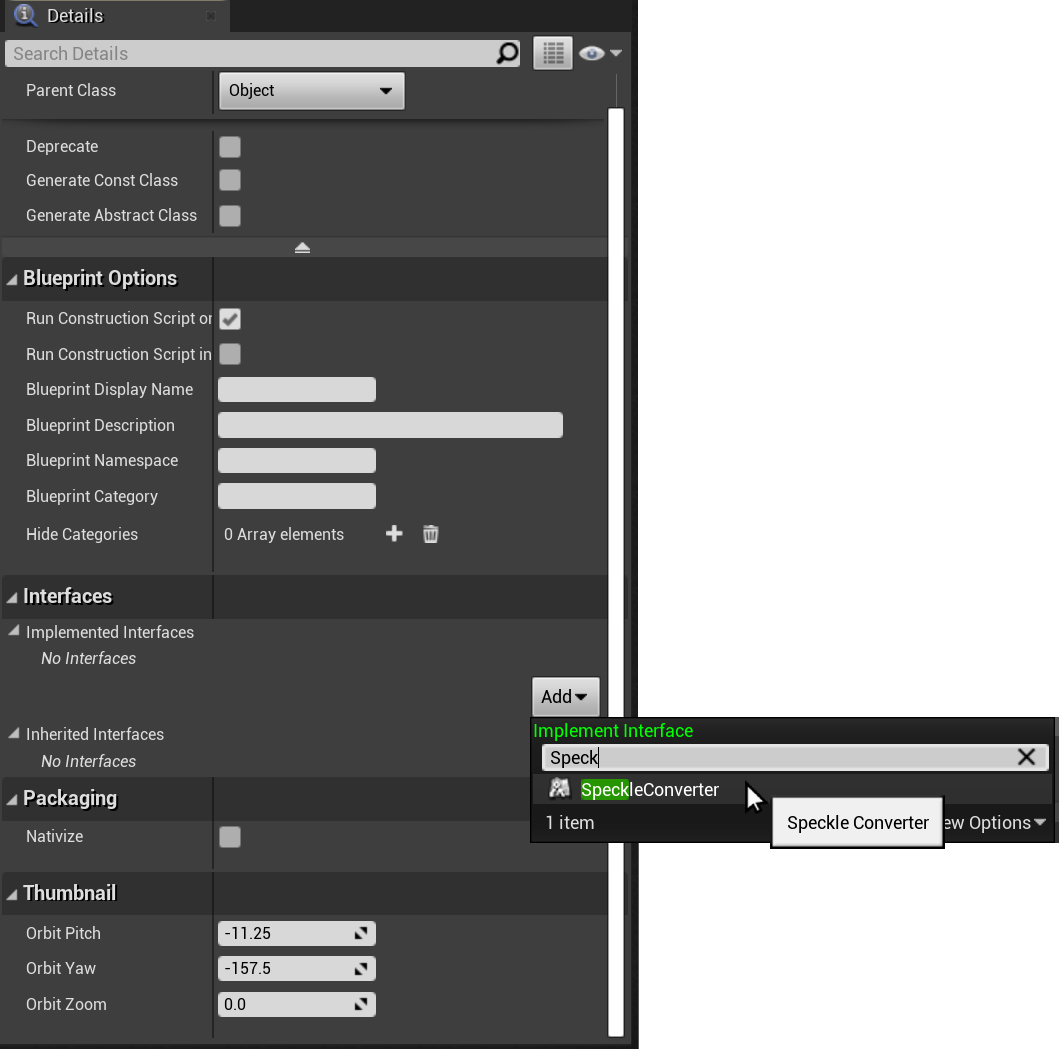

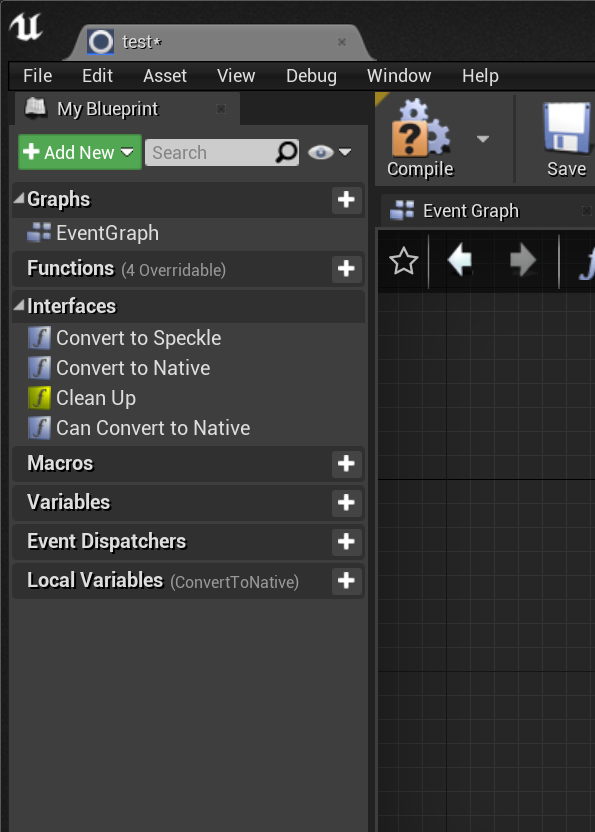

Under Class Settings add ISpeckleConverter to the Implemented Interfaces list.

Finally, implement your conversion logic in the required functions.
