Notice: This user guide is based on the legacy connector.
We recommend using our new connectors instead, as they are easier to use and actively maintained. This legacy documentation may not be up to date.
Legacy Speckle supports versions:
After successfully installing the Revit connector for Speckle, let’s send your first data from Revit to Speckleverse.
We have renamed some core concepts in Speckle to be more widely understandable.
  • Streams have been renamed to projects
  • Branches have been renamed to models
  • Commits have been renamed to versions

​
Launching the connector

Revit connector will be added to all supported versions that you have installed. To launch the connector: Launching the connector
  1. Navigate to the “Speckle” tab in the ribbon.
  2. Click on the “Revit Connector” button, the one with the little blue brick 🧊.

​
Sending Models

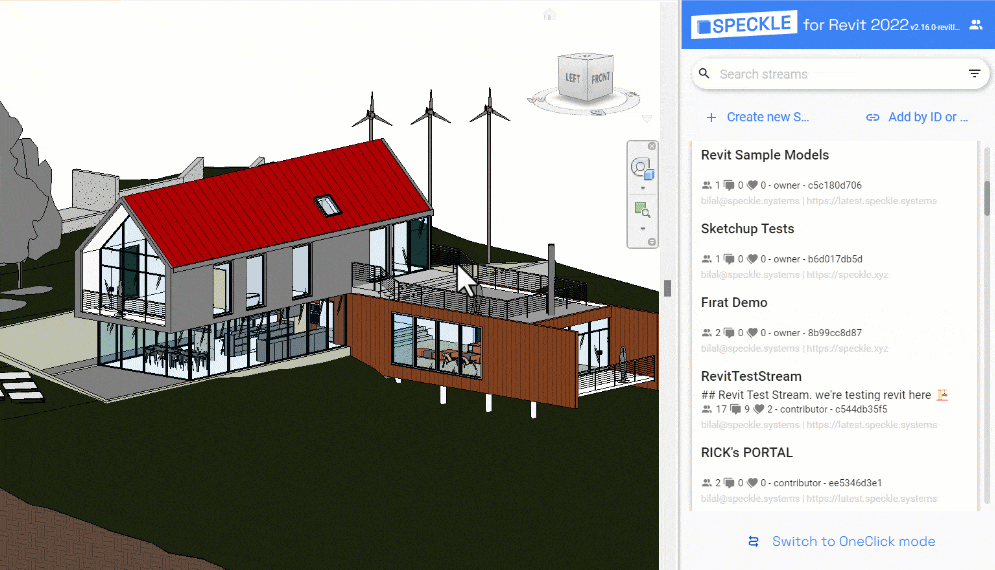

Sending from Revit Sending your Revit model takes only 4 steps:
  1. Select (or create) a Speckle project.
  2. Select (or create) a Speckle model to send to.
  3. Select what you want to send.
  4. Click Send.
Let’s expand on these.

​
Selecting a Speckle project and model

Before sending data from Revit, it is important to determine where you want to send the data. You can create a Speckle project & model using the web interface or the Revit Connector UI. We’ll cover how to create those using the Connector UI.

​
Create a Speckle project

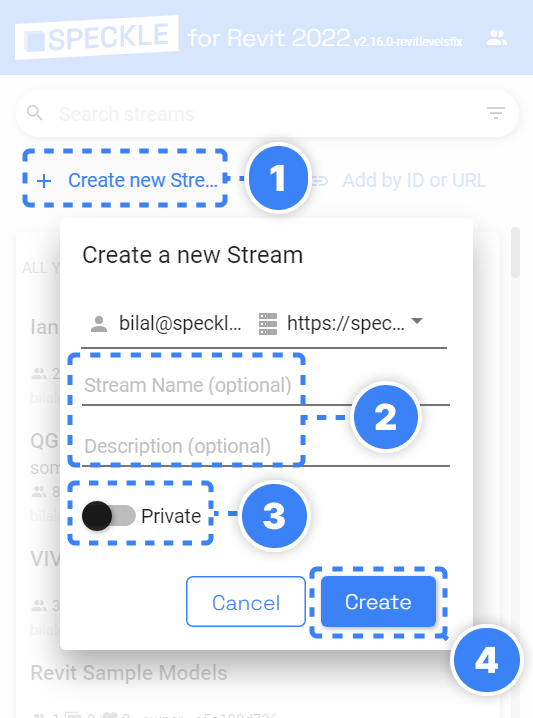

Create Speckle Project To create a Speckle Project:
  1. Click the Create New Project button.
  2. Provide a Name for your Project and an optional Description.
  3. Use the toggle, to make your project Private or Link Shareable.
  4. Click Create.
It’s not necessary to create a Speckle project every time. You can also select an existing project and send data to it.
You can also create a Speckle Project using Speckle’s web interface.

​
Create a Speckle model

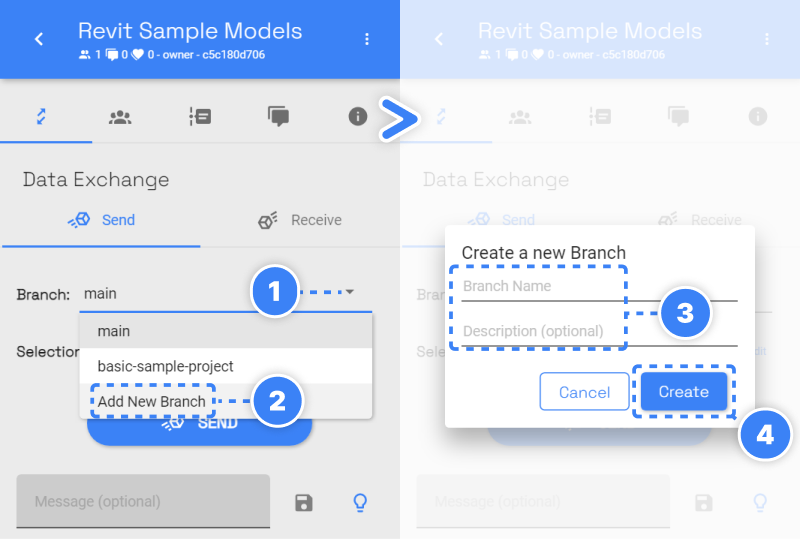

Create Speckle Model To create a Speckle model:
  1. Expand the Model dropdown.
  2. Select Add New Model.
  3. Provide a Name and an optional Description.
  4. Click Create.
Again, you can also select an existing model and send data to it.
You can also create a Speckle model using Speckle’s web interface.

​
Selecting what to send

Next, you need to decide what you want to send from Revit. To help you select which elements will be sent to Speckle, we’ve built various filters into our Revit connector. Once a filter is set, just click Send and all objects passing the filter will be sent to your Project. Let’s review each of filter.

​

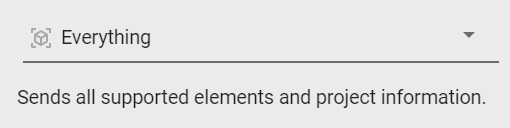

1. Everything

Sends all supported model elements, family types, levels, project information etc. The everything filter covers graphical and non-graphical elements in the model. Everything filter

​

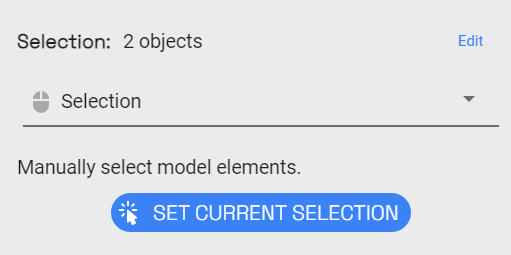

2. Selection

Manually select elements from Revit, click “Set Current Selection” and send them to Speckle. Selection filter

​

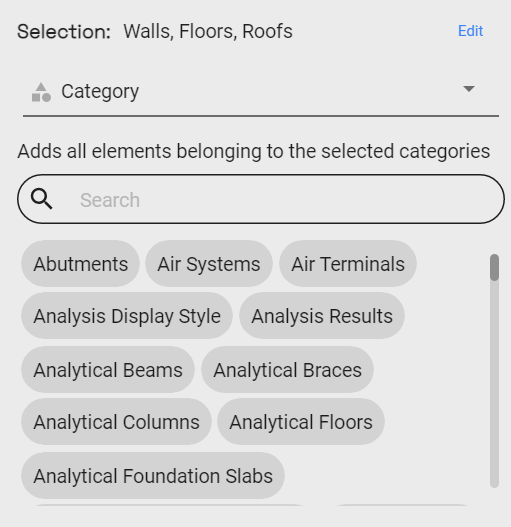

3. Category

The category filter lets you select one or multiple supported Revit categories. Category filter

​
4. View

The view filter works similarly to the category filter and lets you include all elements visible in one or multiple views. View filter

​

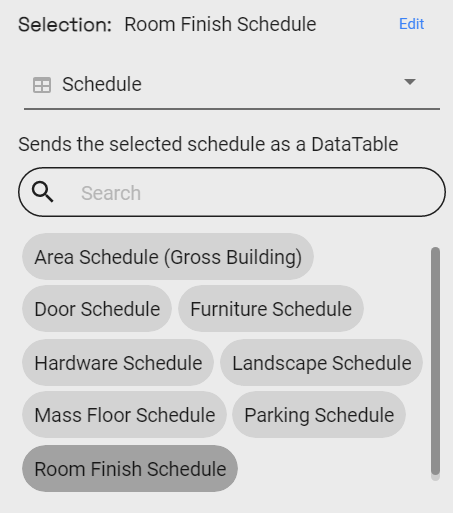

5. Schedule

Sends the selected Revit Schedule as a DataTable to Speckle. Schedule filter

​

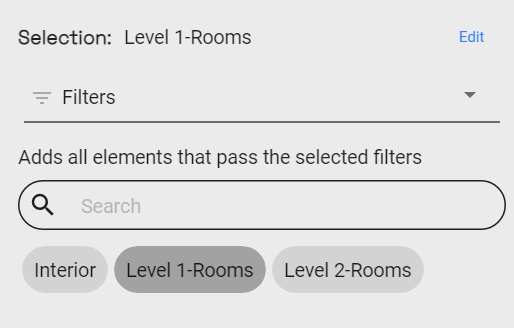

6. Filters

Filters are used to selectively extract specific model elements based on predefined logical conditions. In the given image, for instance, Speckle will identify and send all elements that passes the selected filter. Revit filter

​

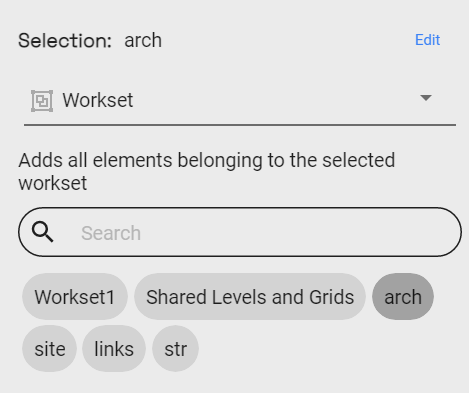

7. Workset

Selects all elements belonging to the selected workset. Workset filter

​

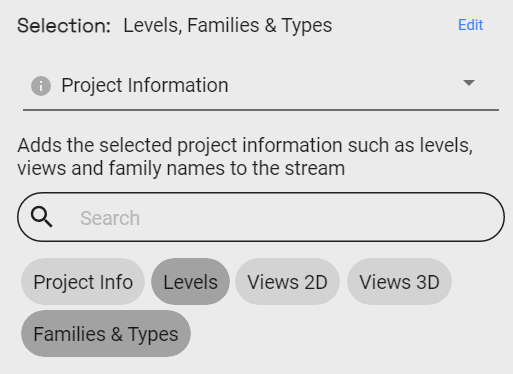

8. Project information

The project info filter lets you add non-graphical elements, such as Levels, Views (2D & 3D), Family Types (their properties, not geometry), and Project Information. Project info filter
