Your day-to-day work stays the same: you publish and load through connectors, and the models you already published stay readable. Speckle 2026.9 introduced a new data format for models, along with the features and changes below. The connector upgrade window and compatibility mode both end on 1 November 2026, so check Action required first. Each item links to the page that documents it. If you build on Speckle or manage it for your organisation, see What’s new for developers and for IT admins.

​
New

  • Speckle Intelligence Chat. Ask questions about your models in plain language from Chat in the project sidebar, or from the sparkle in the 3D viewer. It reads properties and how objects relate, such as which level a wall is on. It reads versions in the new data format only. See Ask questions about your models.

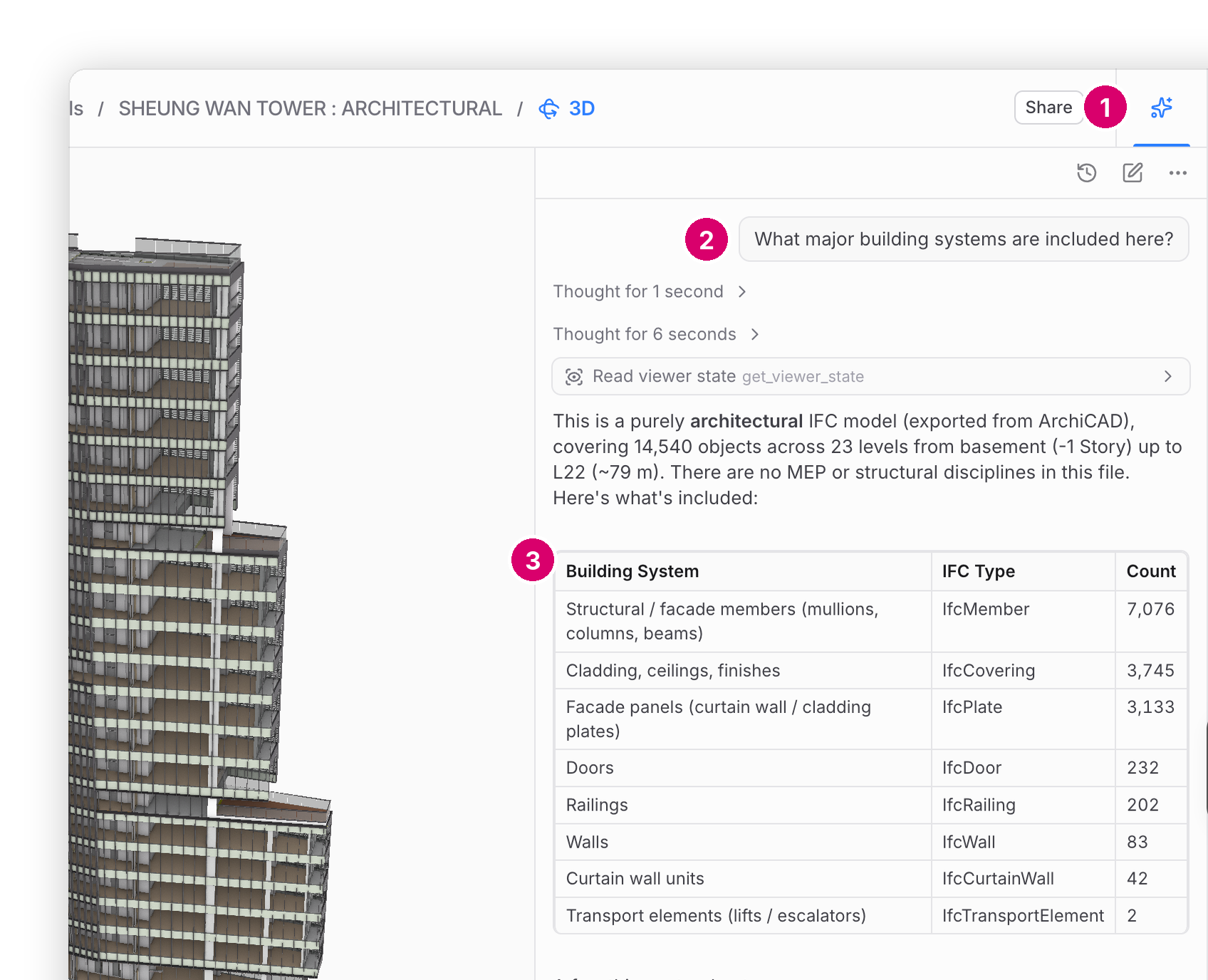

    3D viewer with Chat with your model open beside a tower model: the question What major building systems are included here? and an answer listing building systems by IFC type and count

    1 Open Chat with your model · 2 Your question · 3 The answer, built from the model’s data

  • Intelligence Reports. Chat can save its answer as a Report under Reports in the project sidebar, where you edit and share it. See Intelligence Reports.
  • Intelligence skills. Save a reusable playbook, such as a colour legend or a costing method, then call it in Chat with /skill-name. See Intelligence skills.
  • AI Rules. Workspace admins set standing instructions that Speckle Intelligence follows in every conversation. See AI Rules.
  • Trimble Connect sync (beta). Each new file version in Trimble Connect becomes a new version of a Speckle model. Available on the Enterprise plan. See Sync models from Trimble Connect.
  • Workspace usage. Workspace admins see activity, plan limits, and AI spend under workspace Settings → Usage. See Usage.
  • More upload formats. Upload MicroStation (.dgn), Vectorworks (.vwx), and Solibri (.smc) files, and Tekla Structures files where enabled. See Direct uploads.

​
Changed

  • 3D viewer layout. Panels dock and regroup: Models, Filters, Views, and Issues sit in the left sidebar, Selection shows properties, and Elements lists objects in a table you can export to Excel. In Models, Group by… reorganises the model tree by a property. Section planes replace the section box, Sketch replaces markups, and there are no view modes, lighting, or explode. See 3D viewer.

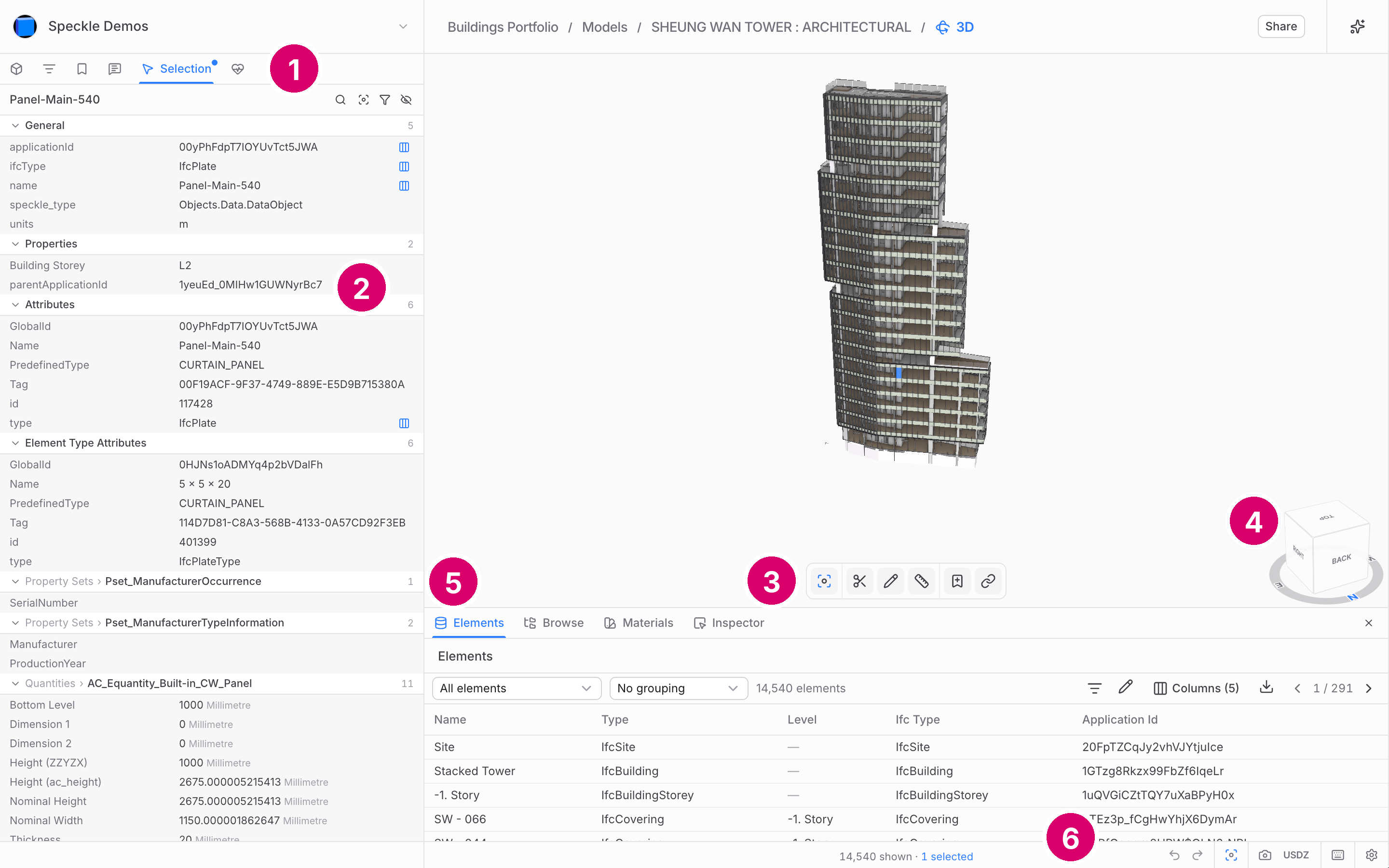

    3D viewer with the Selection panel open in the left sidebar, the toolbar under the model, the navigation cube at the bottom right, the Elements table docked at the bottom, and the status bar below it

    1 Panel tabs · 2 Selection · 3 Toolbar · 4 Navigation cube · 5 Elements · 6 Status bar

  • 3D viewer limitations. Point clouds are not drawn yet, some colours and materials show as grey, and embedded models show only the 3D scene. Your data is unchanged. See 3D viewer.
  • Browser requirement. The 3D viewer needs WebGPU. Models do not open in Firefox on macOS; use Chrome, Edge, or Safari. See 3D viewer.
  • Compare versions. The version diff view is no longer in the web app. Ask Speckle Intelligence what changed between two versions in the new data format. See Assess model changes.
  • Workspace sidebar. The sidebar lists Home, Projects, Intelligence (dashboards), Documents when enabled, Team, and Settings. Open your user settings by selecting your name in the workspace switcher. See Workspaces.
  • Workspace settings. General holds the AI features switch, Settings adds Usage, and an AI section holds Rules and Skills. See Workspace configuration.
  • Dashboards. Dashboards load models in the 2026.9 data format. A few older widgets are retired or replaced: a saved one shows a card in its place, or cannot be added to new dashboards. See Retired and replaced dashboard widgets.
  • Parameter updates. Edit parameters in bulk from the Elements table in the 3D viewer, then apply them in Revit, Rhino, or Civil 3D through Issues. See Parameter Updater.
  • Data Validation. Project standards are not available; author and save checks instead. New checks start with an empty scope and can test related objects. See Data Validation.
  • Connectors. New publishes from an updated connector use the 2026.9 data format. Connectors from 2026.8 and earlier cannot load those versions, and Vectorworks cannot load them yet. See Connectors.
  • File uploads. The default upload path no longer accepts STL, 3MF, 3DS, AMF, DXF, X, E57, IGS/IGES, FBX, PLY, or SLDPRT files. They upload only in compatibility mode. See Direct uploads.
  • Revit. Published geometry stays in Revit’s internal coordinates, and the chosen Reference Point is stored as a model placement that the viewer and connectors apply when they load. A new Apply Transform toggle, off by default, applies the transform to the geometry instead. See Revit.
  • Grasshopper. Load and Publish nodes already on your canvas are renamed Load (legacy) and Publish (legacy), not deleted. Replace them with the current nodes. A new Explore node shows what an object is connected to, such as its level, room, or host. See Grasshopper and Explore.
  • Power BI. Connect to Speckle (Custom) loads models with Speckle.GetTables: an Objects table, Properties and Relations functions, and a new 3D visual. See Power BI.
  • Navisworks. There is no 2026.9 Navisworks desktop connector, and the 2026.8 connector is deprecated. Upload NWC or NWD files instead, up to 2 GB. See Navisworks.

​
Action required

  • Upgrade your connectors before 1 November 2026. The upgrade window is open until then. Connectors from 2026.8 or earlier cannot load versions from updated ones, and Speckle does not guarantee them after the window closes. Upgrade everyone who shares a model, except Navisworks, which stays on 2026.8. If an automation still needs the pre-2026.9 format, update the automation first; until then a 2026.8 publish can still be loaded. See What if someone cannot update their connector yet? and Speckle’s new data model.
  • Ask for compatibility mode only if a tool needs the old format. It applies when cloud syncs or file uploads feed a script, report, or tool that still expects the previous data format. Ask a workspace admin to request it now, and update that tool before compatibility mode ends on 1 November 2026. See Compatibility mode.
  • Move uploads off the removed formats. STL, FBX, and the other removed formats upload only in a workspace with compatibility mode, and not at all after 1 November 2026. Convert them to a supported format. See Direct uploads.
  • Rebuild Power BI reports that follow a model. A Speckle.GetByUrl query on a model URL fails to refresh once the model gets a version published only in the new data format. Rebuild the report with Speckle.GetTables: there is no automatic migration. See Upgrade from 2026.8.
  • Replace Grasshopper legacy nodes. Move each script from Load (legacy) to the current Load node, and from Publish (legacy) to Publish once collaborators have upgraded. See Upgrade to 2026.9.
  • Rebuild Data Validation checks that return no objects. A check saved before 2026.9 can return nothing on a version in the new format. Create it again, preview, and save. See Data Validation.
Last modified on October 19, 2026
