When you load a Speckle model that contains blocks or instances from another application, the Revit connector can convert them into Revit families instead of flat direct shapes. This preserves the block structure and lets you manage instances and materials from within Revit. The blocks in the model come from whatever application was used to publish (for example Rhino blocks, SketchUp components, or AutoCAD blocks). See the FAQ below for which applications are supported and how blocks get into Speckle.

​
Enabling blocks to families

This feature is a load setting and is off by default. To enable it:
  1. In the Revit connector, open the model you want to load.
  2. Expand the Settings section at the bottom of the load dialog.
  3. Toggle Receive Blocks as Families on.
Expect longer load times. Revit must create and load a separate family document for each unique block definition, which is far slower than a standard direct shape load.
Blocks to families load setting
Enabling this setting only affects the current load operation. Toggle it before each load if you want consistent results.

​
How blocks are converted

Each block definition from the source model becomes a Revit family. Block instances in the scene become instances of that family placed in your project.

​
Geometry support

The following geometry types are supported. Each is converted to the most capable Revit representation available:
Source geometryRevit element
SolidsFreeform element
MeshesFreeform element
SurfacesFreeform element
SubDsDirectShape
CurvesDirectShape
PointsDirectShape
If creating a freeform element fails, the connector falls back to DirectShape.

​
Layers become subcategories

Layers assigned to geometries inside a block definition are created as subcategories within the family. This lets you control visibility per layer from Revit’s Visibility/Graphics settings.

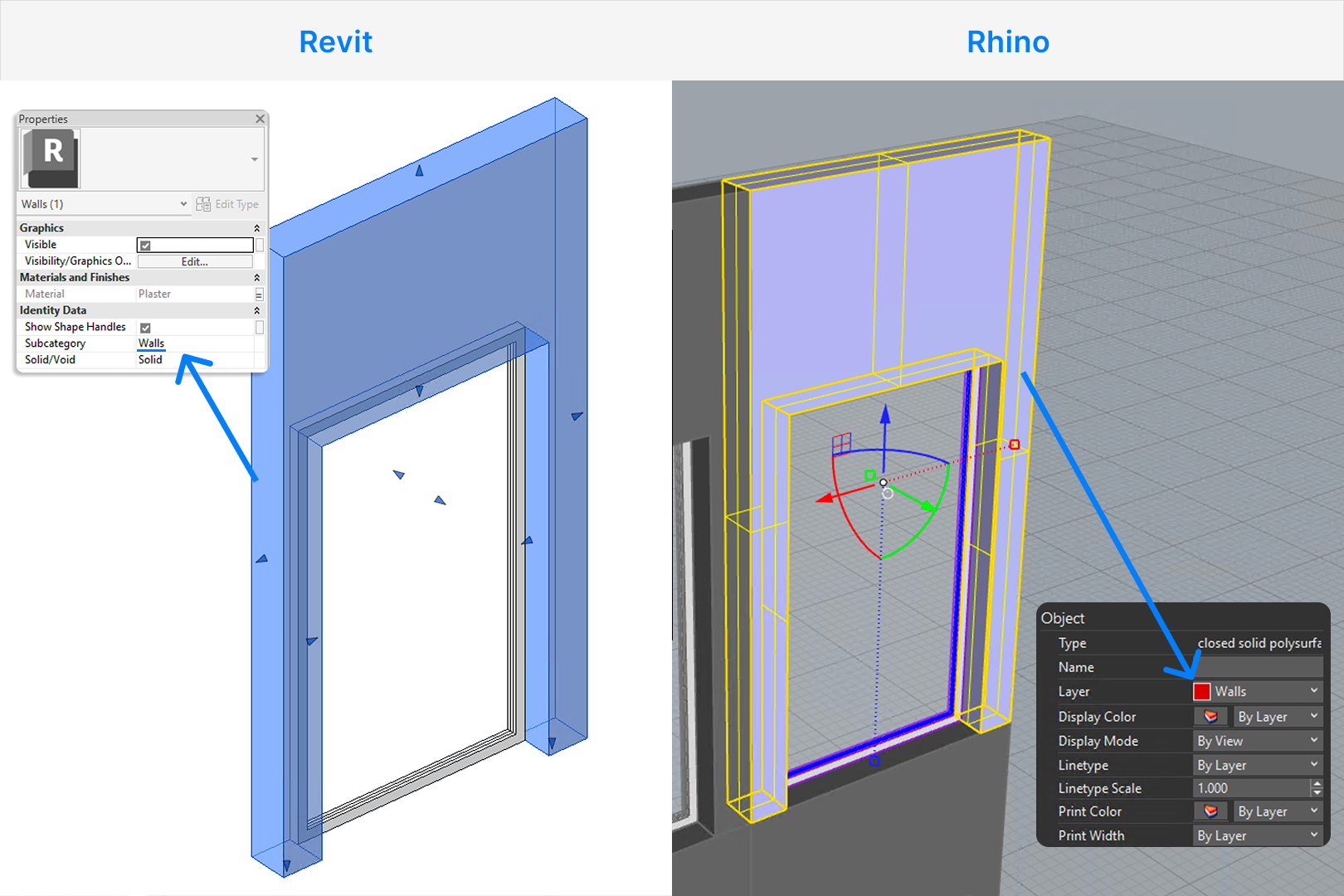

Layers to subcategories in Revit

​
Materials

Materials from the source model are applied to the created geometry inside the family. A type parameter is also created on the family so you can override the material directly from the project without editing the family definition.

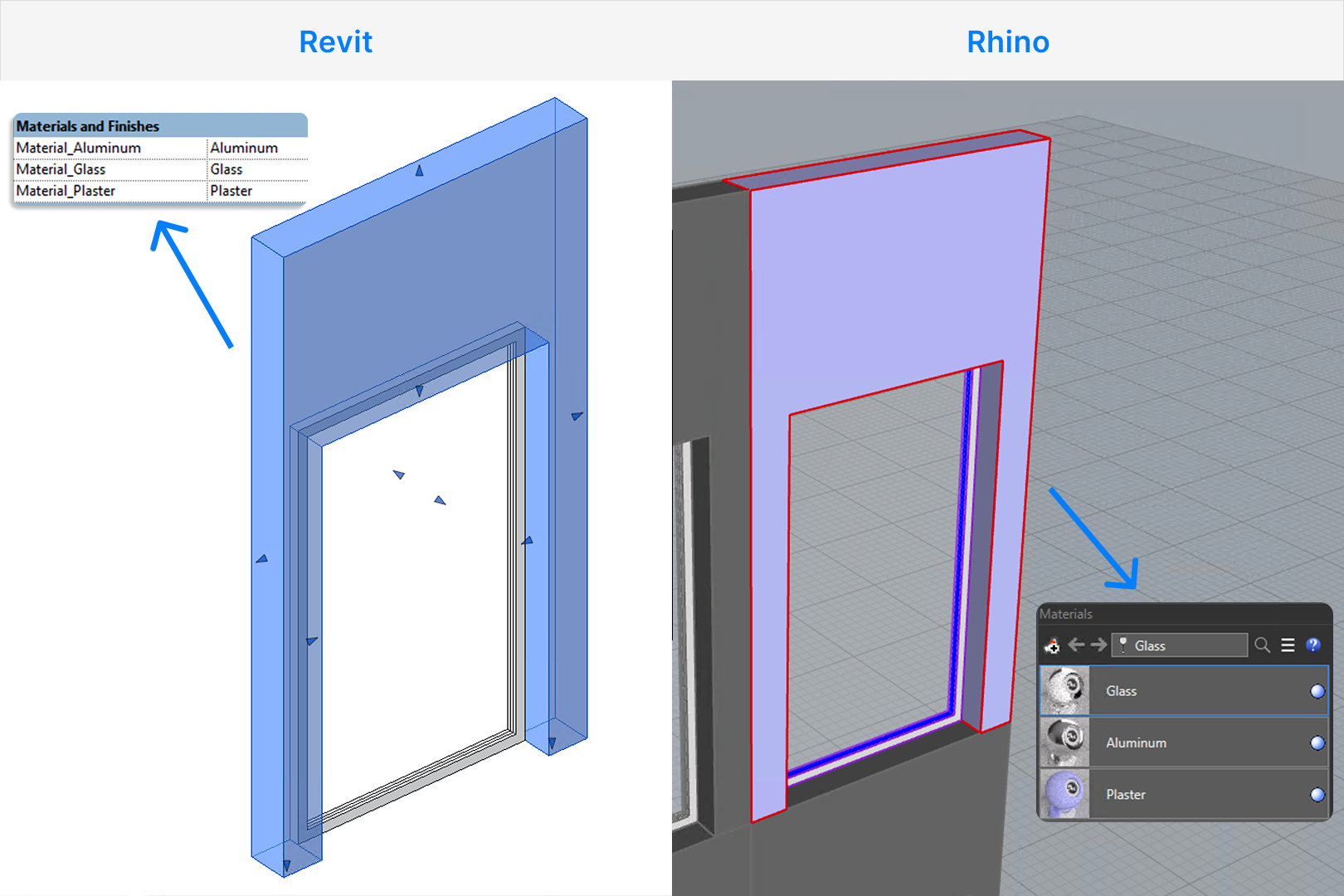

Materials type parameter in Revit

​
Nested blocks

Nested blocks are supported and are converted as nested families. Each level of nesting requires Revit to create an additional family file, which is an expensive operation.
Deeply nested block structures (common in SketchUp models) will significantly increase load time. As a rule of thumb, avoid receiving models with more than two or three levels of nesting.

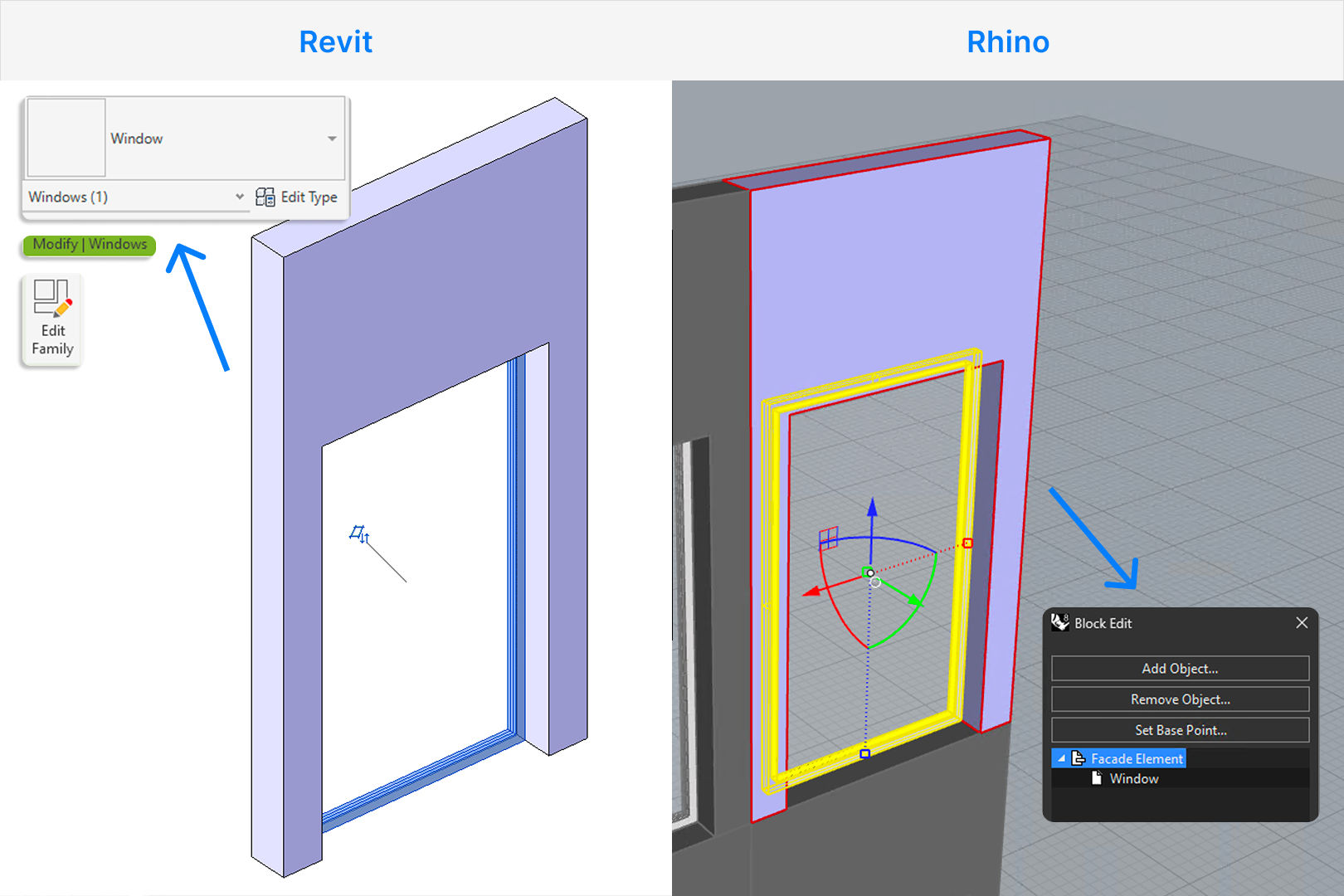

Nested blocks to nested families in Revit

​
Family categories

By default, all families created from blocks are assigned to the “Generic Models” category. If you use the Revit Categorization tool to assign Revit categories to your blocks, the connector will attempt to create the family in the specified category. If the category is not supported, it will fall back to a default category.

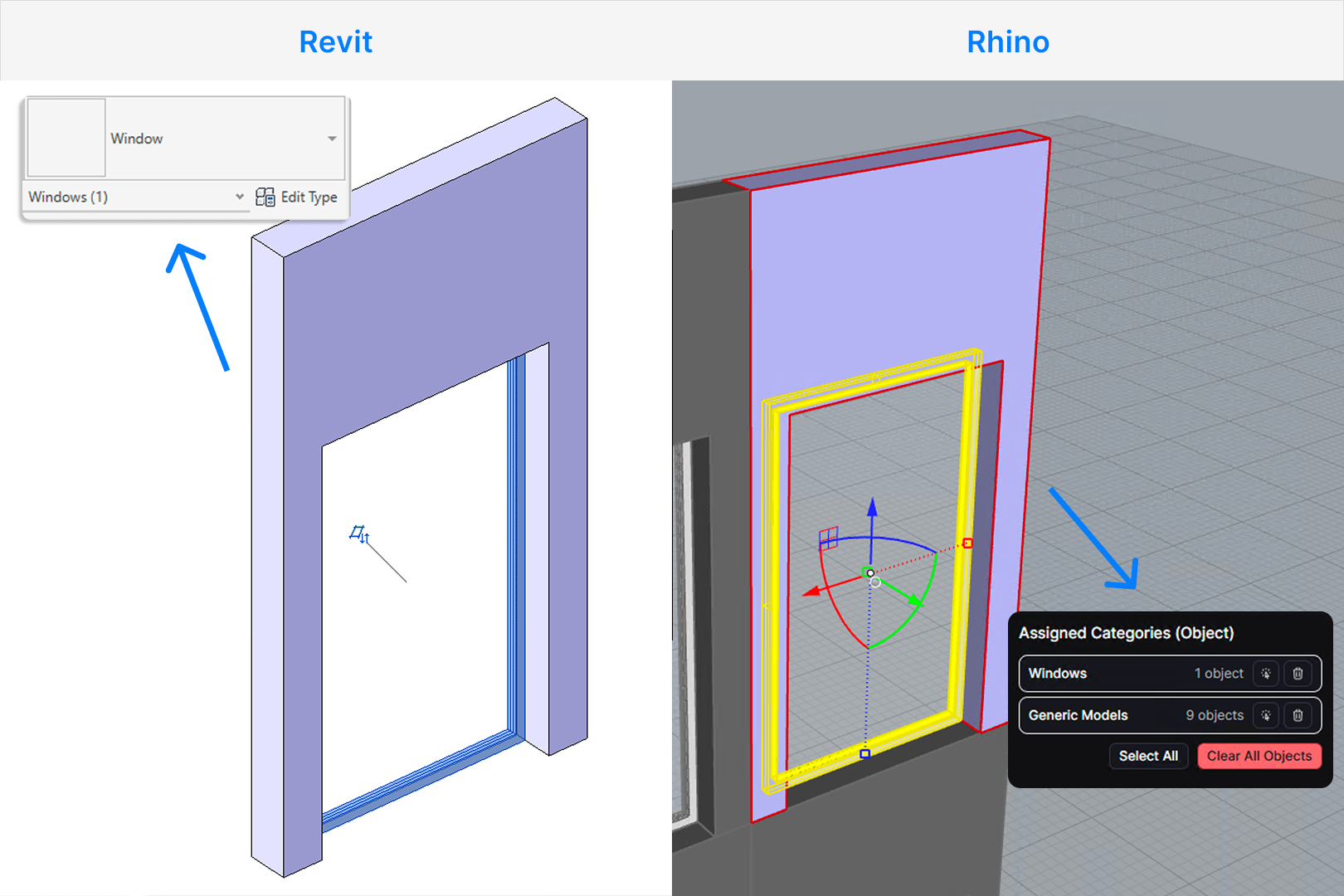

Category assignment from Rhino into Revit

​
FAQ

Any application whose Speckle connector sends block or instance structure will work. That includes Rhino (blocks), SketchUp (components and groups), and AutoCAD (blocks). If you publish from one of these and your model contains block definitions with instances, the Revit connector can receive them as families. Other connectors that support blocks in the future will work the same way.
Blocks come from the application you use to publish. Create blocks (or components, or groups, depending on the app) in that application, then publish the model to Speckle. Speckle stores each block definition once and each placement as an instance. When you load in Revit with Receive Blocks as Families on, those definitions become Revit families and the instances become family instances in the project.
Yes. Nested blocks are converted as nested families, preserving the original hierarchy. However, each nesting level adds to load time because Revit must create a separate family for each unique block definition. Deeply nested models (such as those from SketchUp) can be slow to process.
Revit’s geometry engine only supports transformations that preserve angles — specifically, uniform scale, rotation, and reflection. Non-uniform scaling (where X, Y, and Z scale independently) and shearing (skewing) are not supported by the Revit API at the family instance level.When a block instance in your source model has been non-uniformly scaled or skewed, Speckle will place the family at the correct position and rotation, but the scaling or skew cannot be applied. The family will appear at its original undeformed proportions.To work around this, bake or explode the affected instances in the source application before publishing to Speckle, so the geometry is already deformed and no longer relies on a transform.
