Using a developer access token for authentication

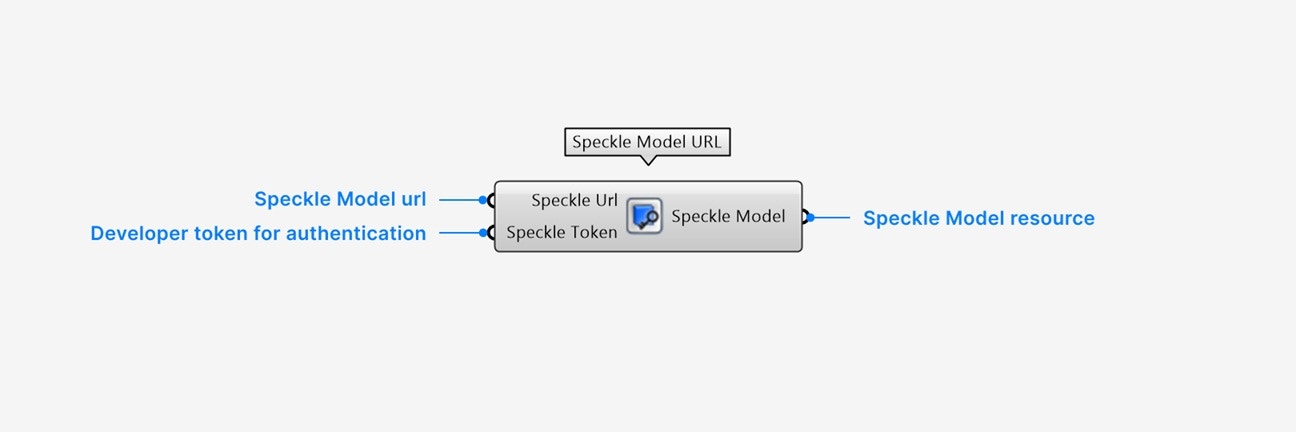

If you are using Speckle for Grasshopper in a headless Rhino environment such as Rhino Compute, or you want access to a Speckle account via developer access token, you can use the Speckle Model URL node.
The developer token used must have the following scopes enabled: profile:read, profile:email, stream:read, and workspace:read (unless on a non-workspace enabled server), as well as any other write scopes needed
Inputs
  1. Add the Speckle URL input to the Speckle Model you want to create a resource for.
  2. Add the Speckle Token input string of your developer access token. Tokens can be created in the Speckle app with your desired permissions.
Outputs
  1. The Speckle Model output contains the Model resource of your input URL.

​
Inspecting all attributes on Speckle params

When viewing your model in Speckle’s web app, you can switch to Dev Mode to thoroughly inspect all attributes on your Speckle objects. Some examples of exposed fields in dev mode are:
  • The Speckle ID, which uniquely identifies this object in the Speckle server.
  • Geometric attributes ex: the knot vector of a NURBS curve.
  • Application-specific attributes on Data Objects ex: the category, family, and level of Revit Objects.
  • Any children objects in Data Objects ex: the baselines of corridor Civil Objects.
  • Any dynamically attached attributes.

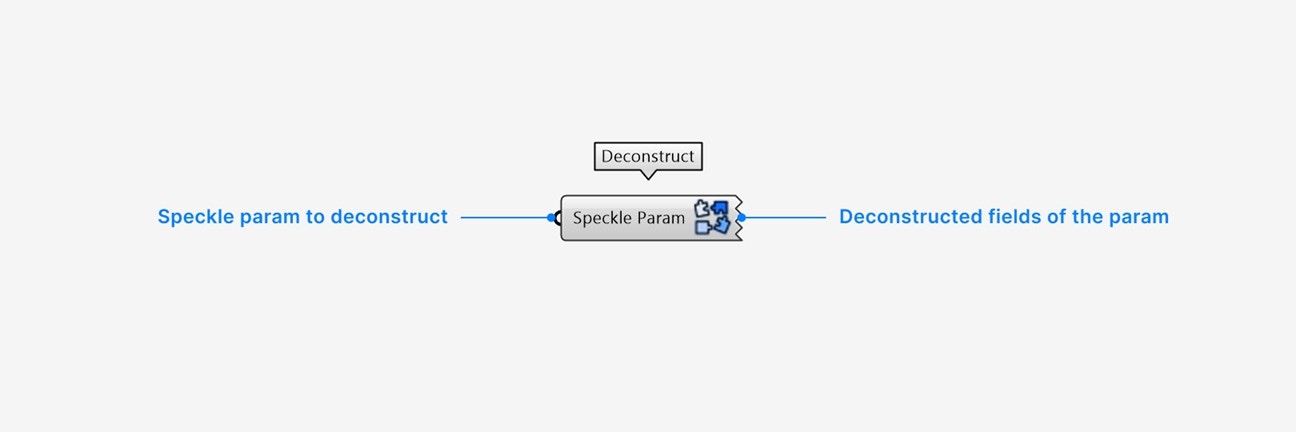

Use the Deconstruct node to access all fields of your Speckle param in Grasshopper as you would in Dev Mode in your browser.
Inputs
  1. Add a Speckle Param input of any Speckle parameter you would like to inspect.
Outputs
  1. An output will be created for every direct attribute on the input Speckle Param.
Additional Settings Right-click an output param for additional settings:
  • Select extract parameter to automatically create a new param node with the value and name of the output param.
This node is intended for attribute inspection on individual objects, or on lists of objects of the same Speckle type. If you would like access to properties across different objects, please request this to be added to our passthrough nodes on our forum.

​
Synchronous operations

For any scripts operating in contexts which require synchronous solving of nodes, use the Publish (sync) and Load (sync) nodes instead of the default Publish and Load nodes.

​
Using Speckle with C#/Python script nodes

​
C# script

Speckle publishes nuget packages for our C# SDK. You will need to install the following nugets for your custom C# script:
  • Use the Speckle.Sdk nuget for publish and load operations, serialization, core objects classes like Base and Collection, and more.
  • Use the Speckle.Objects nuget for access to all geometry and additional object classes.
1

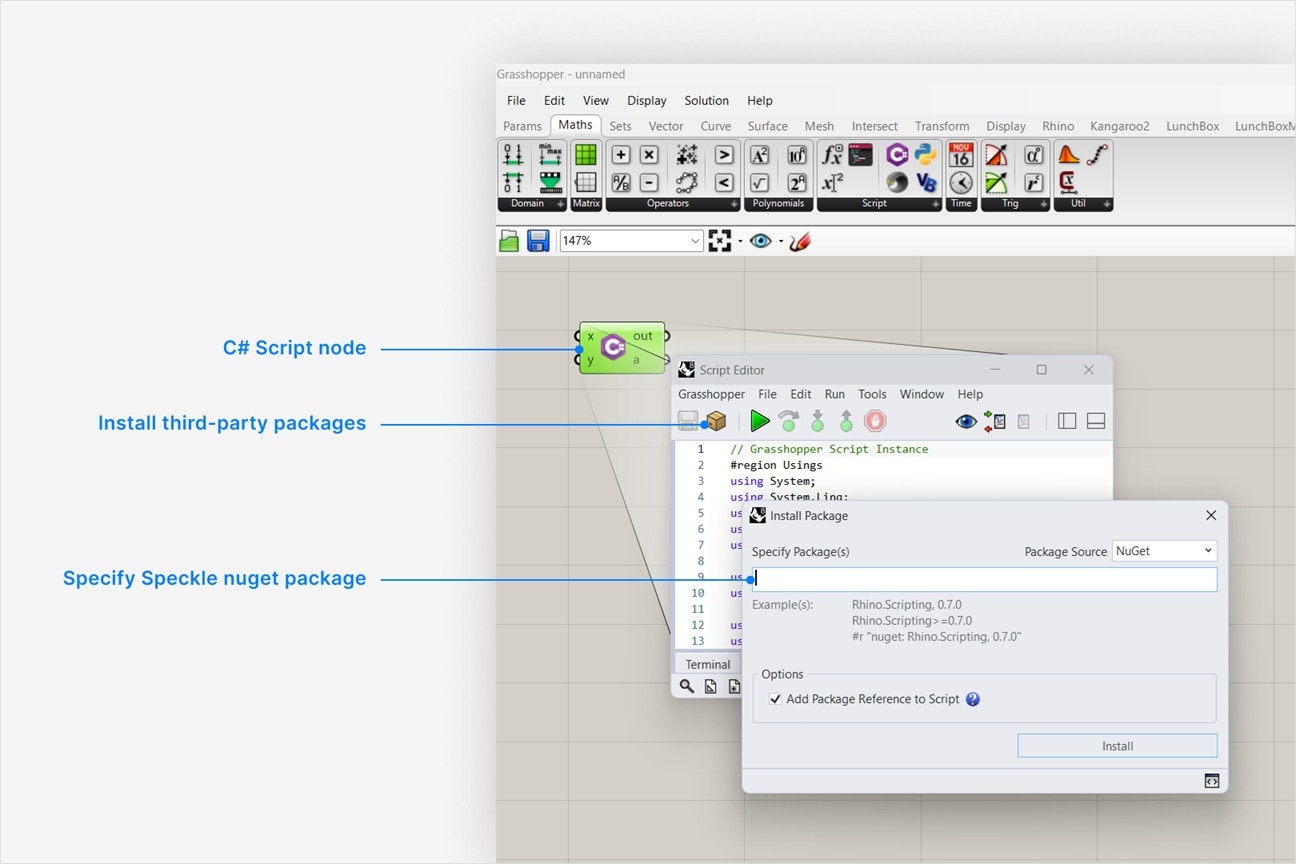

Add a C# script node to your canvas

  1. This node can be found in Maths > Script.
  2. Double-click the node to open the script editor window.
2

Install the Speckle.Sdk nuget package

  1. Click the box icon to install a third-party package for your script.
  2. Navigate to the Speckle.Sdk nuget package in your web browser (links above).
  3. Go to the Script & Interactive tab and copy the value to your clipboard. The copied text should look like this, with the most recent version of the sdk.
#r "nuget: Speckle.Sdk, 3.5.5"
  1. In Grasshopper, paste the copied value into the Specify Package(s) field and click Install.
3

Install the Speckle.Objects nuget package

Repeat the previous step for the Speckle.Objects nuget package. The copied text should look like this, with the most recent version of the sdk.
#r "nuget: Speckle.Objects, 3.5.5"

​
Python script

Speckle python SDK can be installed with pip for your custom Grasshopper python script
  • Use the specklepy package for publish and load operations, serialization, all objects classes, and more.
1

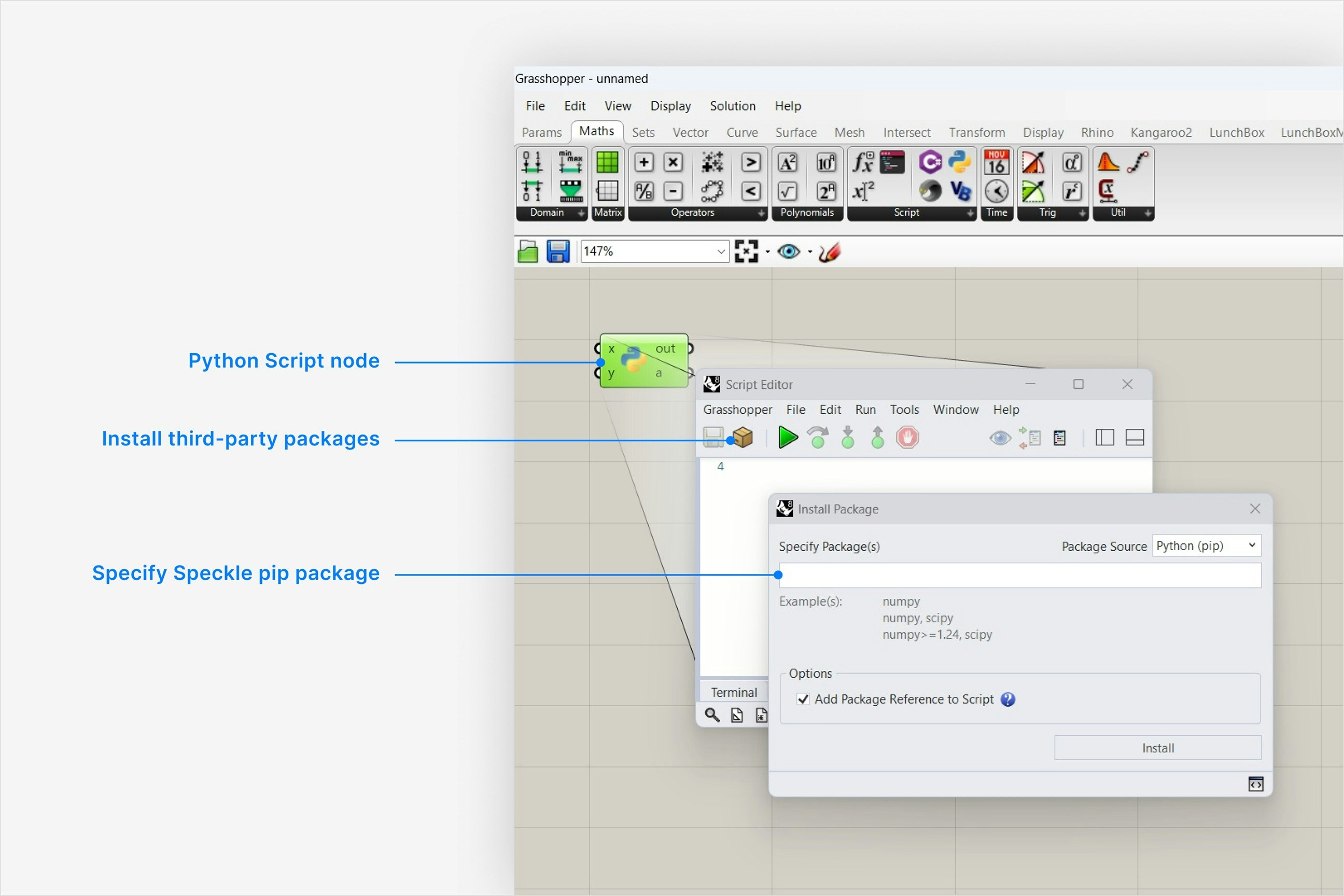

Add a Python script node to your canvas

  1. This node can be found in Maths > Script.
  2. Double-click the node to open the script editor window.
2

Install the specklepy package

  1. Click the box icon to install a third-party package for your script.
  2. Type specklepy into the Specify Package(s) field and click Install. You can verify this is the pip package name in the link above.
specklepy
